Multi-Frequency RTK GNSS GPS GLONASS BD GALILEO Built-In Ceramic with Vertical Polarization

Categories	GNSS Antenna
Frequency Range:	GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
Operational Temperature:	-50~+85℃
Model Number:	RG02101A
Supply Ability:	400000pcs per month
Polarity:	vertical
Polarization:	Vertical
Connectivity:	as requirement
LNA Gain:	38dBi
Color:	white
Horizontal plane coverage angle:	360
Connector:	as requirement
Packaging Details:	opp bag single pcs
Dimension:	60mm*30mm
VSWR:	≤1.8
Impedance::	50Ω
Certification:	ISO9001/IATF16949
Brand Name:	RIDA Antennaer
MOQ:	2
Place of Origin:	Guangdong, China
Material:	PET, ceramic
Delivery Time:	10-15days
Type:	GPS/GNSS Antenna

Contact Now

Add to Cart

Company Info.

Shenzhen Ruida Yongli Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

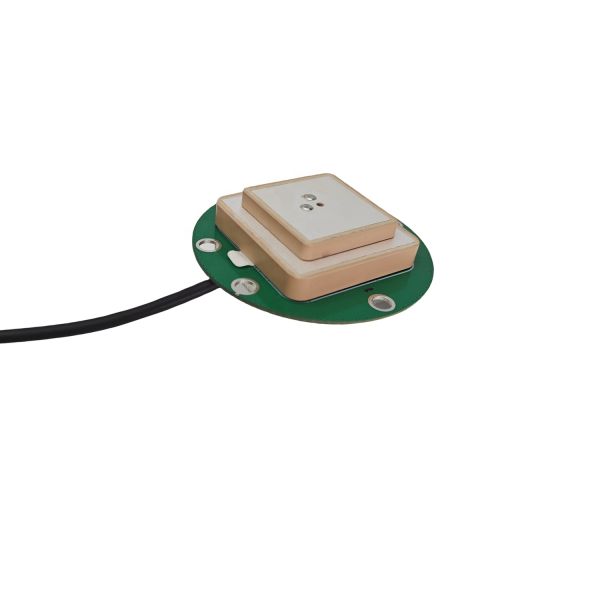

Multi-Frequency RTK GNSS GPS GLONASS BD GALILEO Built-In Ceramic with Vertical Polarization

Multi-star Multi-frequency Built-in RTK GNSS Ceramic Antenna GNSS GPS GLONASS BD GALILEO Antennas Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description

Product Description

Compact, rugged, multi-band, high gain, suitable for many types of high-precision positioning applications, such as drones, new energy vehicles, industrial helmets, unmanned delivery vehicles, intelligent agriculture and other outdoor equipment.

It can be debugged according to customers' requirements and providing coverage for triple-band GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, plus L-Band correction services.

· FEATURES

- Active GPS with integrated LNA

- 2G/3G/4G band support
- 2.4 GHz WiFi
- Circular polarization
- Adhesive mounting

· APPLICATIONS

- Precision GNSS Positioning

- Autonomous vehicle tracking and

guidance

- Smart Agriculture

- Law enforcement and public safety

-Tri-frequency RTK and GNSS receivers

· OPTIONS

- Cable Length
- Connector Type

Product Parameters & Customizable Range

Antenna	Frequency range	GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, L-Band


	impedance	50Ω
	Polarization	RHCP
	Antenna axis ratio	≤1.5dB
	Horizontal plane coverage angle	360°
	Output standing wave	≤2.0
	Maximum gain	4dBi
	Dimension	⊘60mm*30mm
LNA	Gain	38dBi
	Noise factor	≤2dB
	Output standing wave	≤2.0
	Operating Voltage	3.3~12VDC
	Operating current	≤45mA
	Gain Flatness	±2dB
Working Environment	Operating temperature	-40℃~+85℃
	Storage temperature	-55℃~+85℃
	Humidity	95%Non-condensing
