| Categories | OCA Vacuum Laminator |
|---|---|
| Model Number: | ZT-ZQBY310 |
| Vacuum value: | 99% |
| Function: | Lamina Glass With LCD Screen by Vacuum |
| Brand Name: | ZhongTu |
| Temperature range: | 0-180 degrees |
| MOQ: | 1 |
| Packaging Details: | wood case |
| Effective Platform Dimensions: | 40*64*5cm |
| Payment Terms: | T/T |
| Lamination Precision: | ±0.1mm |
| Dimensions: | 51*64*50cm |
| Supply Ability: | 1000set/month |
| Weight: | 35KG |
| Price: | 1200 |
| Voltage: | AC110V/220V 50-60HZ |
| Processing time: | 15 seconds |
| Power: | 1200W |
| Operating Air Pressure: | 4-8KGF/C ㎡ |
| Certification: | CE, ISO, RoHS |
| Place of Origin: | China |
| Vacuum Range: | 0~150Kpa |
| Model NO.: | ZT-ZQBY310 |
| Production capacity: | 1000Sets/month |
| Operation mode: | Automatic |
| Company Info. |
| Shenzhen Zhongtu Automation Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

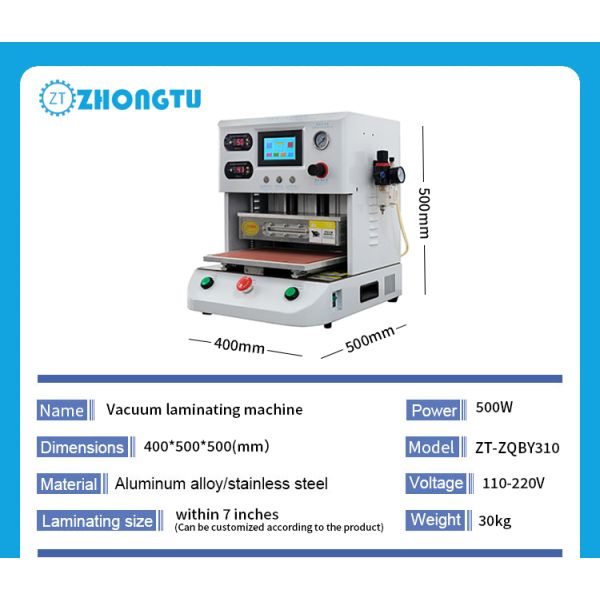

Model | ZT-ZQBY510(9inch) | ZT-ZQBY310(15inch) | ZT-THJ036(32inch) |
Equipment Application | Used for vacuum lamination of various precision products, especially suitable for lamination of electronic display products such as mobile phones and tablets. It can achieve bubble-free and high transmittance lamination effect, and can also adapt to the lamination needs of various types of products such as curved surfaces and flat surfaces | ||
Applicable Industries | Electronic manufacturing, optical component processing and other industries | ||
Power | Approx. 850W | Approx. 1200W | Approx. 2200W |
Input Voltage | AC 110-240V/50-60HZ | ||
Overall Machine Dimensions (L/W/H) | 400 × 500 × 500mm | 510mm × 640mm × 500mm | 930mm × 1400mm × 1350mm |
Effective Platform Dimensions (L/W/H) | 290 × 220 × 45mm | 400mm × 640mm × 50mm | 700mm × 490mm × 50mm |
Transmission Method | Pneumatic transmission, upper and lower pressing type | ||
Precision Guide Rail | Taiwan HIWIN/TBI Brand | ||
Lamination Precision | ±0.1mm (meets the precision requirements of precision lamination equipment) | ||
Control System | Touch screen + PLC,enabling precise parameter setting and control | ||
Vacuum Range | 0~150Kpa, adjustable according to operation needs to ensure bubble-free lamination | ||
Upper and Lower Platforms | Heatable, temperature adjustment range 0~85℃ | ||
Parameter Settings | Adjustable pressing force and holding time, to suitable different products | ||
Communication Method | USB + R232 | ||
Operating Environment Humidity | 20-90% | ||
Operating Air Pressure | 4-8KGF/C ㎡ | ||
Operating Vacuum | Need used with the dedicated vacuum pump ( configured by customer) | ||
weight | 30KG | 35KG | 350KG |









✅ Why Zhongtu

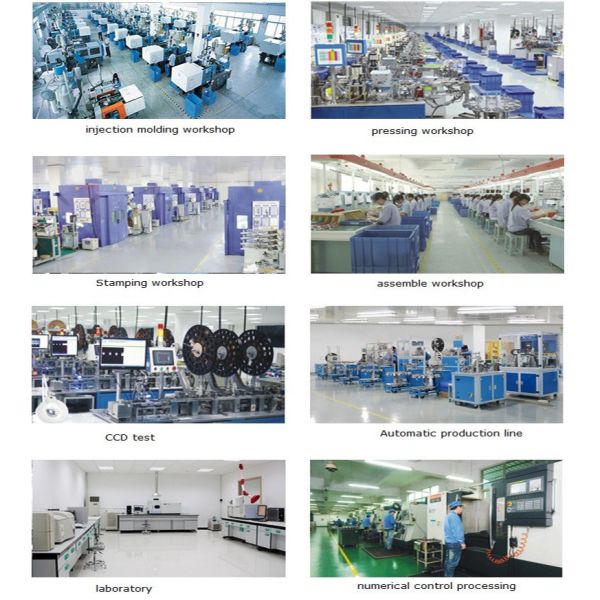

10+ years in automation R&D & manufacturing
In-house machining & assembly
CE/RoHS compliant
1-year warranty +3 years core components warranty+ 24h after-sales
support
|
