Mesh Size 200*200mm Mesh Length 12m Concrete Reinforcing Mesh Welding Machine

Mesh Size 200*200mm Mesh Length 12m Concrete Reinforcing Mesh Welding Machine

Introduction of Concrete Reinforcing Mesh Welding Machine

Concrete Reinforcing Mesh Welding Machine automatically welds steel wires into mesh for construction. Controlled by PLC, it precisely clamps and welds wire intersections using electric current and pressure. The machine continuously pulls and cuts mesh for efficient production. It features high welding speed, accurate sizing, energy-saving operation, and easy touch screen control, supported by servo motors and air cylinders for stable performance.

Features of Concrete Reinforcing Mesh Welding Machine

1. Special steel tube enables easy line wire feeding; servo motor sends line wires further; SMC cylinders auto-clamp; slot tunnels lift to protect electrodes.

2. Cross wire feeder with 1T capacity uses motor & reducer for bulk feeding; servo motor ensures precise, stable wire falling with big torque.

3. Mesh pulling is driven by servo motor with reducer, SMC cylinders control hook lift, and PLC adjusts wire spacing via touch screen.

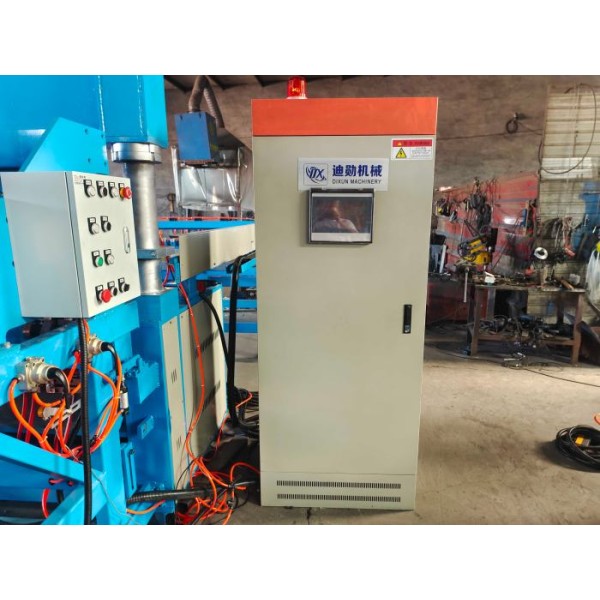

4. PLC control system ensures precise, automated operation of the entire machine, allowing easy parameter setting, real-time monitoring, and stable performance.
5. Efficient and Fast: Automated welding improves production efficiency and reduces labor costs.
6. Stable Welding Quality: Strong welds and uniform connections ensure mesh strength and durability.
7. Precise Control: A PLC system adjusts welding parameters for high-precision welding and dimensional control.
8. Energy-Saving and Environmentally Friendly: A rational design reduces energy and gas consumption, resulting in more economical operation.
9. Easy Operation: A touchscreen control interface allows for easy setup and monitoring of production status.
10. Wide Range of Applications: Supports a variety of rebar specifications to meet diverse project requirements.
11. Compact Structure: Saves factory space and facilitates installation and maintenance.

Advantages of Concrete Reinforcing Mesh Welding Machine

The up and down electrodes all adopts special CuCrZr,the electricity conductivity,hardness and wear resistance are all very good,the changeover time of the longitudinal cell is reduced to about 30 seconds.Welding electrodes are driven by the spindle passing through the crank,and installed with adjustable spring pressure,This structure is not affected by climate and convenient maintenance and usage.
And the up and down electrodes both adopt water cooling system,thus an reduce the heat of the upper and lower electrodes when the machine works, and can work for 24 hours continuously.

Technical Parameters of Concrete Reinforcing Mesh Welding Machine

Applications of Concrete Reinforcing Mesh Welding Machine

Steel mesh welding machines are widely used in construction projects such as concrete structure reinforcement, road and bridge construction, tunnel and subway construction, prefabricated component manufacturing, industrial plant and warehouse construction, and water conservancy protection facilities, helping to efficiently produce high-quality steel mesh.

Reinforcing Mesh Product

Reinforcing mesh panels are widely used in Construction, Road Projects, Water Conservancy, Mining Support,Industrial Flooring, Prefabricated Components. Typical applications include:

1.Construction: Reinforcement for floors, walls, slabs, and roofs.
2.Road Projects: Used in highways, bridges, and tunnels for concrete reinforcement.
3.Water Conservancy: Strengthening for dams, reservoirs, and canal slopes.
4.Mining Support: Used in tunnels and underground passages for safety support.
5.Industrial Flooring: Reinforcement for factory and warehouse floors.
6.Prefabricated Components: Framework for precast concrete products like pipes and culverts.

Photos of Concrete Reinforcing Mesh Welding Machine

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
