| Categories | Wood Drill Bit |
|---|---|
| Certification: | ISO9000 |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Surface Finish: | Painted & Bright |
| Color: | Color Painting |
| Place of Origin: | CHINA |
| Price: | $0.45-1.5/PCS |
| Shank: | Quick Change Hex Shank |
| Size: | 19X300 |
| Brand Name: | XRTOOLS |
| MOQ: | 500PCS |
| Delivery Time: | 25-30 days |
| Material: | High Carbon Steel |
| Type: | Twist Drill Bit |
| Packaging Details: | Each item will be transparent plastic box |
| Model Number: | 19*300 |
| name: | Wood Auger Bits |
| Supply Ability: | 20000PCS PER DAY |
| Use: | Wood Drilling |
| Company Info. |
| Jiangsu Xingrui Precision Tools Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The 19x300mm Auger Bit is a heavy-duty industrial tool designed for deep-bore penetration in structural timber, bridge construction, and utility projects. With a 19mm diameter, it provides the ideal clearance for structural bolts, plumbing pipes, and heavy-gauge electrical conduits.
Forged from premium High-Carbon Alloy Steel, this bit features a Solid Center Design to provide maximum stiffness. This ensures that throughout the entire 300mm (12-inch) depth, the bit maintains a perfectly straight path without the "deflection" or bending common in lower-quality long-reach bits.

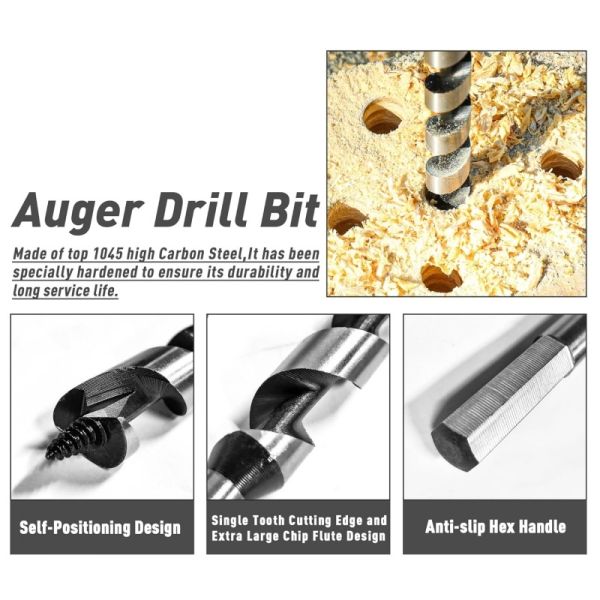

The precision-threaded lead screw acts as a pilot, pulling the 19mm head into the wood automatically. This Self-Feeding mechanism drastically reduces the physical thrust required by the operator, making it efficient for drilling through thick structural beams or multiple stacked joists.
At a 19mm diameter, chip volume is significant. Our Ship Auger Flute design features a deep, open spiral that ejects waste material instantly. This prevents the bit from "locking up" or overheating mid-bore, even when drilling resinous softwoods or pressure-treated lumber.
To handle the massive torque generated by a 19mm cut, the bit is engineered with a Solid Center Core. This provides the torsional strength needed to resist snapping when the bit encounters tough knots or high-density grain in hardwoods like Oak or Jarrah.
The outer spur shears the wood fibers around the circumference before the main lifting edge removes the wood. This results in a Splinter-Free entrance and a smooth-walled hole, ensuring a professional fit for 19mm hardware.
Structural Timber Framing: Precision boring for heavy M18/M19 bolts and threaded rods.
Plumbing & HVAC: Creating clean 19mm passages through floor joists for PEX piping and copper lines.
Railway & Landscaping: Drilling through heavy railway sleepers, retaining walls, and 6x6 fence posts.
Log Home Construction: Deep-hole drilling for electrical wiring and structural settling bolts.
Industrial Protection: Each bit is individually treated with anti-rust oil and housed in a reinforced PVC hanging tube or a heavy-duty plastic sleeve.
Bulk Supply: 25–50 pieces per reinforced export-grade master carton, palletized for secure international transit.
OEM Customization: Precision Laser Etching of "19x300mm" and your brand logo directly on the shank for professional identification.
Q: What type of drill is best for this 19mm bit?
A: Due to the high torque of a 19mm diameter, we recommend a High-Torque Rotary Drill with a side handle. While a 1/2" cordless drill can handle it, the side handle is essential for operator safety if the bit hits a knot.
Q: Can this bit be used in "Green" (wet) timber?
A: Yes. The wide-flute ship auger design is specifically intended to clear wet, "stringy" wood chips without clogging, unlike standard twist or spade bits.
Q: Is the 10mm hex shank compatible with my impact driver?
A: Most standard impact drivers use a 1/4" (6.35mm) quick-release. This 19mm bit uses a 10mm reinforced hex shank for strength; you will need a standard 3-jaw chuck or a 10mm hex adapter.
|
