Automatic Automotive Foam Gasket Cutter Machine CNC Feeding Precision Moving Head Leather Digital Die Cutting Machine

Categories Leather Making Machines
Brand Name: DAFENG TECH
Model Number: DF-680C
Certification: CE
Place of Origin: CHINA
MOQ: 1
Price: 16800
Payment Terms: L/C,T/T
Supply Ability: 10
Delivery Time: 15
Packaging Details: Wooden box packaging
MACHINE NAME: Automatic Automotive Foam Gasket Cutter Machine CNC Feeding Precision Moving Head Leather Digital Die Cutting Machine
Cutting Pressure: 40T (400kN)
Total Motor Power: 7.6kW (Motor + Servo Motor)
Net Weight: 3000kg
Cutting Area: 1600×500mm
Conveyor Belt Size: 5652×1600×5mm
Machine Size: 2500*2530*1820mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic Automotive Foam Gasket Cutter Machine CNC Feeding Precision Moving Head Leather Digital Die Cutting Machine

Automatic Automotive Foam Gasket Cutter Machine CNC Feeding Precision Moving Head Leather Digital Die Cutting Machine
Advanced CNC-controlled cutting machine designed for precision automotive foam gasket production and leather digital die cutting applications.
Technical Specifications
Basic Performance
Cutting Pressure40T (400kN)Structure & Configuration
Total Motor Power7.6kW (Motor + Servo Motor)
Net Weight3000kg
Power Supply380V / 50HzLubrication SystemCentral automatic lubrication device
Air Pressure<6kgf/cm²Die FixingPneumatic L-type clamping device
Processing Specifications
Cutting Area1600*500mmSafety & Operation
Conveyor Belt Size5652*1600*5mm
Machine Stroke20-130mm
Machine Opening Distance150mmOperation ModeAutomatic cutting after contacting material
Precision & Control
Control ModePLC control system + touch screen operationApplication
Feeding DriveServo motor drive
Synchronization & BalanceAutomatic guide linkage
Precision CuttingCyclic cuttingSuitable MaterialsSoft materials
Conveyor Belt Deviation CorrectionManual adjustment deviation correction deviceOperation TypeContinuous automatic punching
Hydraulic SystemSingle cylinderSafety ProtectionSafety light curtain + emergency stop device
Machine Size2500*2530*1820mm
Key Features
  • Moving head leather die cutting technology
  • CNC precision feeding system
  • PLC control with touch screen interface
  • Servo motor drive for accurate positioning
  • Automatic guide linkage for balanced operation
  • Central automatic lubrication system
  • Comprehensive safety protection with light curtain
  • Continuous automatic punching capability

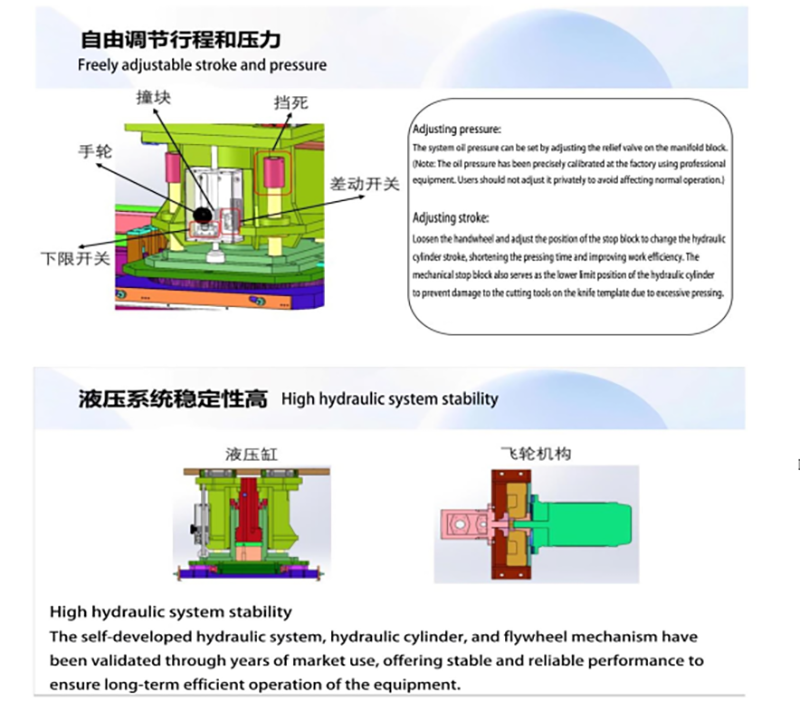

Moving Head Leather Die Cutting Machine detailed diagram
