| Categories | Refrigerator Truck |
|---|---|
| HS Code: | 8705909990 |
| Van Material: | Fiberglass, Polyurethane Foam, Stainless Steel |
| Place of Origin: | CHINA |
| Brand Name: | EHY |
| Truck Type: | 15 Tons Refrigerator Truck |
| Driving Type: | 4*2 Left Hand Drive |
| Specification: | 10000x2550x3980(mm) |
| Engine: | Weichai Engine, Wd615.87 (290HP) |
| Van Box Size: | 7520X2420X2500mm |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Transport Package: | Nude, Container, RO-RO, Bulk |
| Production Capacity: | 500 Units Per Month |
| Name: | Carrier Refrigerated Unit |
| Payload: | 10-15ton |
| Horsepower: | 251-350hp |
| Fuel: | Diesel |
| Condition: | New |
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, FAW, Jmc |
| Refrigerator Unit Brand: | Thermo King/Carrier/Dongin Thermo/Chinese Brand |
| Model Number: | EHY |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
| Trademark: | EHY |
| Origin: | Suizhou, China |
| Van Thickness: | 60-80mm |
| Emission Standard: | Euro III/IV/V/VI |
| Transmission Type: | Manual |
| Bearing Capacity: | Medium |
| Car Type: | Van |
| Tire Type: | 12.00r20, with 1 Spare Tire |
| Logo or Pattern: | as Per Customer's Request |
| Company Info. |
| HUBEI HUAYI SPECIAL AUTOMOBILE CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

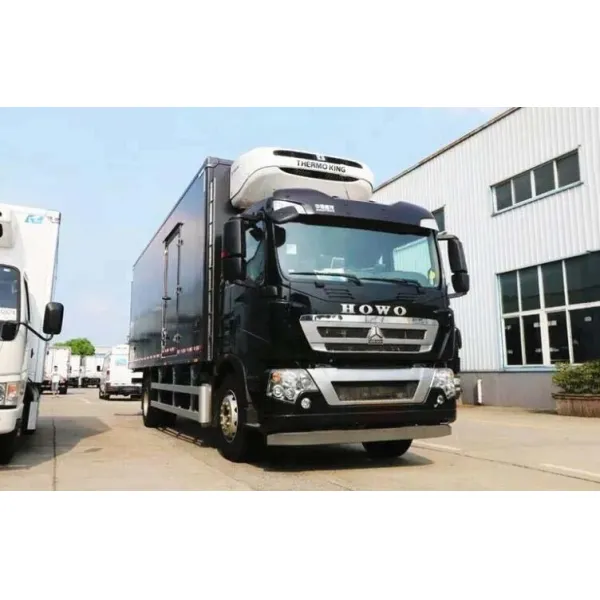

| Name | HOWO 4X2 Refrigerator Truck |
| Dimension(LxWxH) | 10000x2550x3980(mm) |
| Total Mass | 27860Kg |
| Rated Payload | 20000Kg |
| Kerb Weight | 7860Kg |
| Passenger | 3 |
| Approach/Departure Angle | 16/23 |
| The Parameters of Chassis | |
|---|---|
| Manufacture/Model | HOWO/ZZ1167M4611W |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 4600 mm |
| Gearbox | HW13710, eleven speed lever with ten speed forward and one reverse, manual |
| Front/Rear Track | 2041/1830(mm) |
| Tyre | 12.00R22.5 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1500/1890(mm) |
| Leaf Spring Number | 10/9+6 |
| The Paremeters of Engine | |
| Manufacturer/Model | Sinotruck/WD615.62 |
| Rated Power | 266hp/196kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 9726ml |
| Emission Standard | Euro2 |
| Cylinder | Straight/6/intercooling |
| Max. torque | 1100N.m |
| Velocity | 2200rpm |
| The Parameters of Equipment | |
| Wagon Body Dimension | 7520x2420x2500(mm) |
| Color of the Wagon | Customizable |
| Function | Transporting the frozen food, dairy products, vegetable, fruit and vaccine medicine etc. |
| Wagon Materials | Stainless steel, glass fiber reinforced plastics, aluminium alloy, or color steel plate, etc. with PU etc. sandwiched. |
| Wagon Thickness | 10-20cm |
| Lowest Refrigeration Temperature(ºC) | -18 DEGREE |
|
