| Categories | Wire Rope Electric Winch |
|---|---|
| Payment Terms: | T/T |
| Supply Ability: | 500000pc/ year |
| Model Number: | 2000LBS,3000LBS,4000LBS,6000LSB,9000LBS,12000LBS,13500LBS,20000LBS |
| Moror: | pure motor |
| MOQ: | 10 |
| Delivery Time: | 20 working days |
| Color: | Black, red, blue |
| Price: | 140sd |
| After sales service: | 1 year |
| Packaging Details: | Carton or PLY wooden case |
| Certification: | CE ISO |
| Power: | Dc powered winch |
| Place of Origin: | China |
| Control: | wire control or wireless remote control |
| Brand Name: | OEM |
| Product name: | car electric winch, truck electric winch, auto electric winch |
| Company Info. |
| HEBEI WELDON LIFTING MACHINERY MANUFACTURING CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

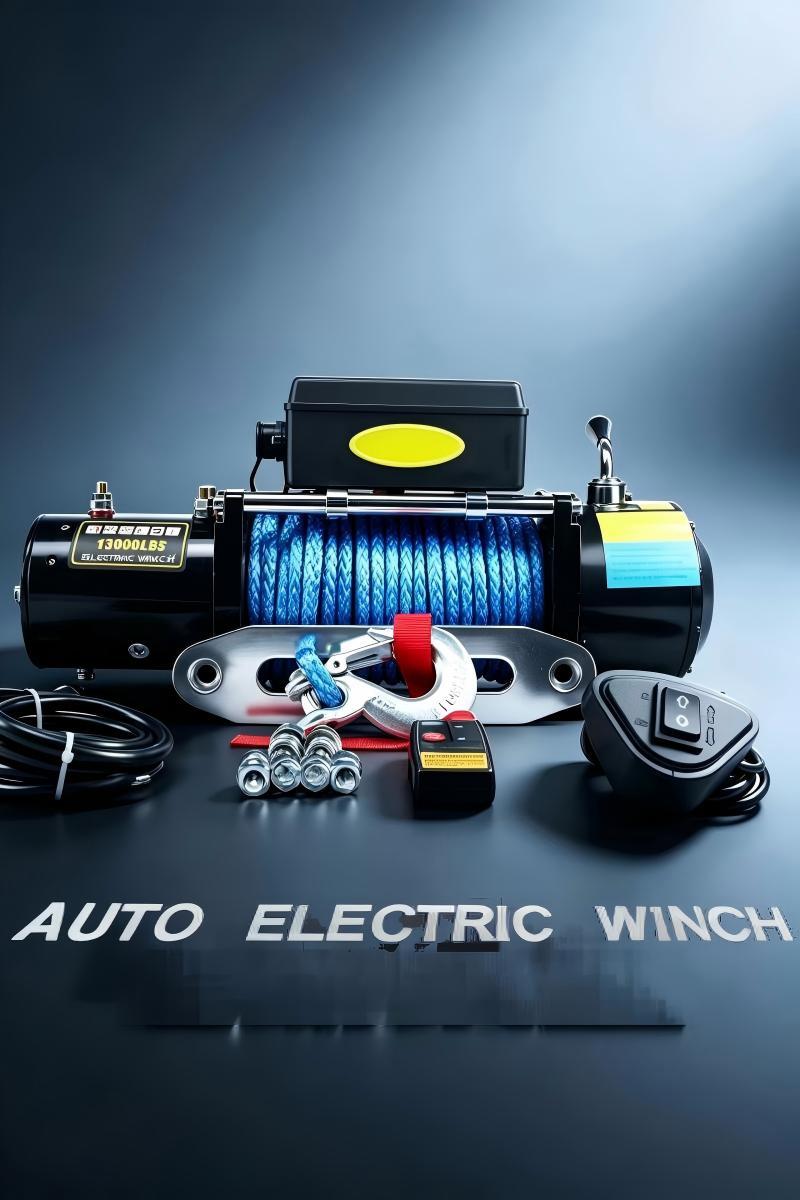

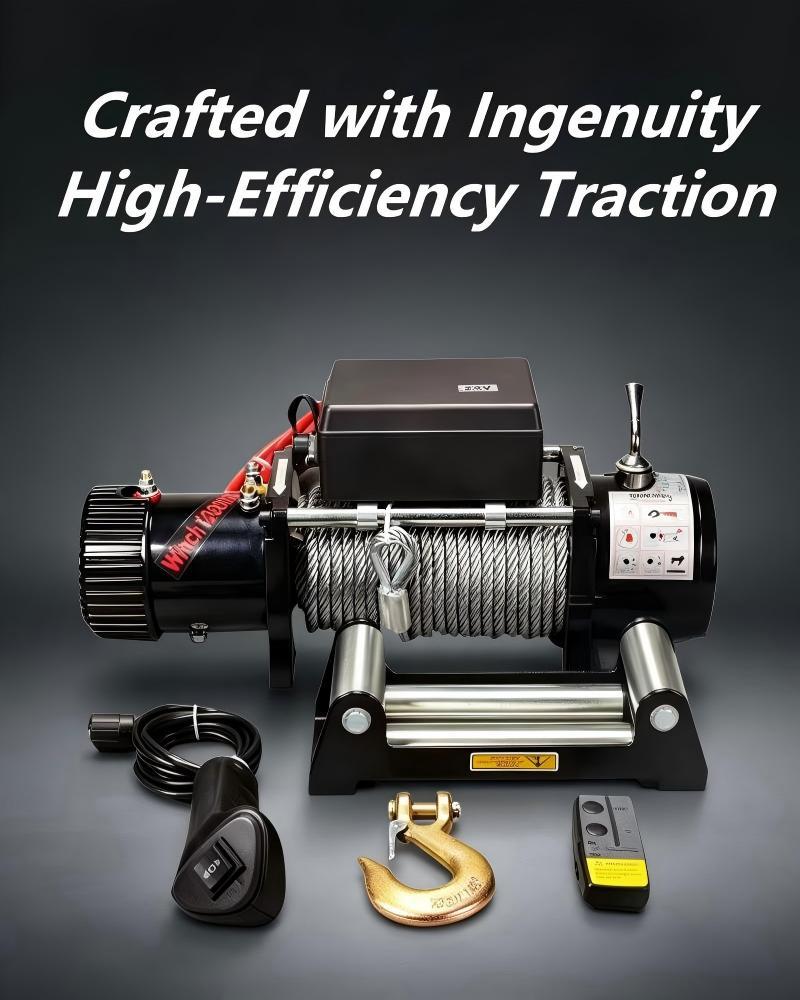

Description: Auto electric winch, car electric winch
Electric winch operates on a 12V DC 24V DC system, making it ideal for Car, ATVs, UTVs, and boat trailers, serving as devices for self-recovery and towing. With capacity 2000lbs, 3000lbs, 3500lbs,4000lbs, 6000lbs, 9000lbs, 12000lbs, 20000lbs.
It have strength wire rope type, and Synthenica rope type. it also can used for lifting goods. rope length customization.
Features:
| 1 | Pure copper motor |
| 2 | Wire rope and synthenic rope both offer |
| 3 | Forged hooks |
| 4 | 12V DC, 24DC |
| 5 | Turck electric winch, car electric winch |
| 6 | Easy install and operate |
Technical data
| Electric winch 12V/24V, wire rope length can make according customer's request | ||||||||||
| Model | Rated traction (kg) | Vertical lifting (kg) | Motor no-load power (kw) | Wire rope (diaxlength) | Size (LxWxH) mm | Installation dimensions (hole spacing-hole diameter) mm | Drum dimensions (diameter length) mm | G.w (kg) | Wooden case size (LxWxH) cm | Remart |
| 2000lbs | 900 | 200 | 0.4 | 4mmx6m | 268x110x105 | 76-8.5 | 3.15x72 | 5.80 | 33x24x15 | Without mounting plate and rope guide |
| 3000lbs | 1300 | 300 | 0.55 | 5mmx6m | 299x110x105 | 76-8.5 | 31.5x72 | 6.15 | 33x24x15 | Without mounting plate and rope guide |
| 3500lbs | 1500 | 350 | 0.6 | 5mmx10m | 320x110x105 | 76-8.5 | 31.5x72 | 8.15 | 40x31x16 | With mounting plate and rope guide |
| 4000lbs | 1800 | 400 | 0.8 | 5mmx10m | 343x110x112 | 76-8.5 | 49.5x72 | 9.20 | 40x31x16 | With mounting plate and rope guide |
| 4500lbs | 2000 | 450 | 0.9 | 5mmx10m | 363x110x112 | 76-8.5 | 49.5x72 | 9.55 | 40x31x16 | With mounting plate and rope guide,with remote wireless control |
| 6000lbs | 2700 | 500 | 1.5 | 7mmx14m | 340x160x217 | 165x114-11 | 63x135 | 23.80 | 55x25x32 | Without mounting plate and rope guide |
| 9500lbs | 4300 | 600 | 1.9 | 9mmx24m | 529x160x217 | 255x114-11 | 63x220 | 36.15 | 58x32x29.5 | With rope guid and remoe wireless control, without mounting plate |
| 12000lbs | 5400 | 750 | 2.0 | 9mmx24m | 529x160x217 | 255x114-11 | 63x220 | 37.25 | 58x32x29.5 | With rope guide and remote wireless control, without mounting plate |
| 13000-13500lbs | 6000 | 800 | 2.2 | 9mmx24m | 529x160x217 | 255x114-11 | 63x220 | 37.25 | 58x32x29.5 | With rope guide and remote wireless control, without mounting plate |
| 20000lbs | 9000 | 1000 | 2.8 | 1lmmx24m | 560x196x260 | 255x114-12 | 88x215 | 52.00 | 63x31x23 | With rope guide and remote wireless control, without mounting plate |
Company profile:
Welcome to HEBEI WELDON LIFTING MACHINERY MANUFACTURING CO., LTD
We are manufacturer of Lifting chains, hooks, chain sling, chain hoist, lever hoist, electric hoist, electric winch, pallet truck, webbing sling, lifting clamp, magnetic lifter ect. most of these items with CE, ROHS certificate.
We have more than 25 years manufacturing and export business experience. In addition to selling products under its own brand, our company also OEM & ODM for world-renowned enterprises
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2. What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3. What’s your MOQ?
Because we are manufacturer, different items with different MOQ, but we also accept trial sample order.
4. What about deliver leading time?
About 15-30 working days
5. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
|
