Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring

Categories Diamond Wire Saw Machine
Model Number: CGWS-3500-21
Automation: Automatic
Control System: PLC SYSTEM
MOQ: 1
Delivery Time: 15-30days
Water Consumption: 4m3/H
Max Processing Size: 3500*3500*2100mm
Advantage: Multi Function With Good Quality And Price
Payment Terms: L/C,D/A,D/P,T/T
Main Motor: 15kw
Model NO.: GWS-3500-21
Wire Speed: 0-40m/S2
Price: USD50000-55000
Wire Diameter: 7.2mm to 11mm
Name: Diamond Wire Saw Machine
Warranty Time: One Year
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Gross Motor: 11kw
Packaging Details: Plastic Package, Suitable for Sea Transportation
Table bearing weight: No table
Place of Origin: Jinjiang, Fujian, China
Rope Length: 20.6m
Brand Name: Xianda Machinery
Cutting Precision: High
Supply Ability: 1000 Sets/Year
Transport Package: Plastic Package, Suitable For Sea Transportation
Control Type: CNC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring

Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring
XIANDA Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring. The CNC Diamond Wire Saw Machine is a high-precision stone cutting solution designed for granite, marble, and special-shaped stone processing. Featuring a movable structure, hydraulic wire tension control, four-axis CNC linkage, DXF automatic programming, and intelligent wire protection, it delivers accurate, efficient, and reliable cutting performance for modern stone fabrication industries.

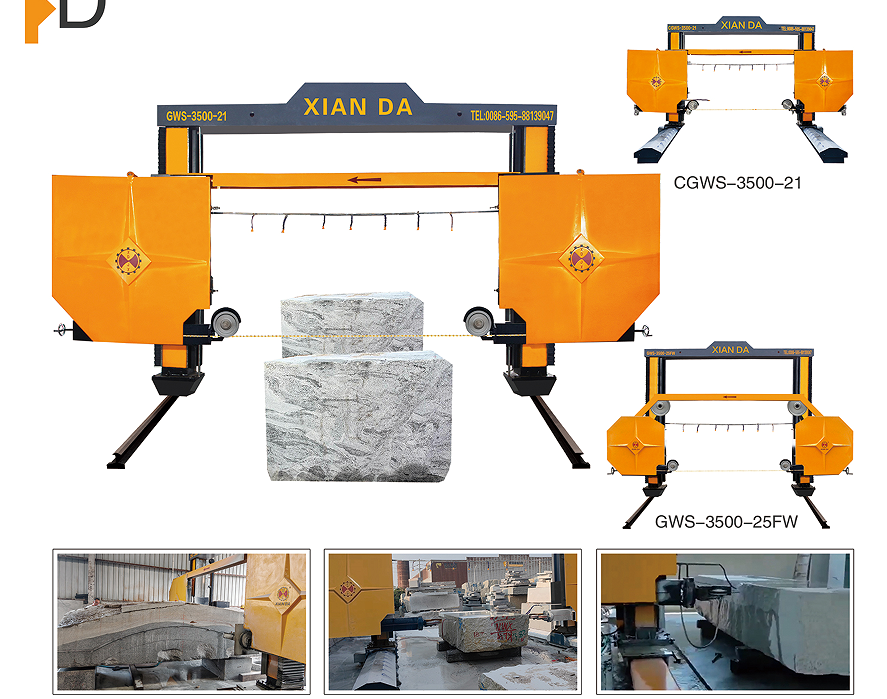

Industrial Diamond Wire Saw Machine

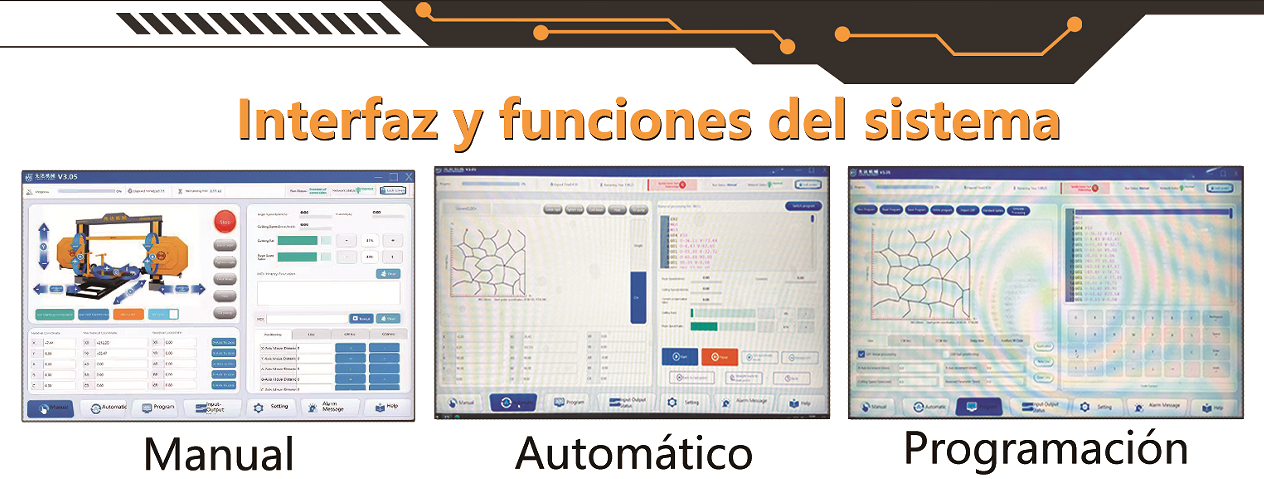

Electric Cabinet & Operation Panel
Electric Cabinet and Operation Panel
Technical Specifications
Model NumberCGWS-3500-21GWS-3500-21
Control SystemCNCPLC
CertificationsAPI, CCC, SONCAP, GOST, ISO, CE, SGSAPI, CCC, SONCAP, GOST, ISO, CE, SGS
Main Motor15KW15KW
Gross Weight10500kg10500kg
Outline Dimension9000*5800*5600mm9000*5800*5600mm
Max Processing Size3500*2500*2100mm3500*2500*2100mm
Water Consumption4m³/h4m³/h
Table Bearing WeightNO WORKTABLE(OPTIONAL)NO WORKTABLE(OPTIONAL)
Wire Speed20-40m/s20-40m/s
Production Capacity1000 Sets/Year1000 Sets/Year
OriginFujian, ChinaFujian, China
Key Features
Movable Machine Structure
Innovative movable body design eliminates the need for additional trolley systems, providing greater flexibility, easier installation, and better space utilization.
Robust Heavy-Duty Frame
High-strength industrial structure with reinforced top beam, dual vertical columns, rigid square frame components, and hydraulic power unit.
Hydraulic Wire Tension Control
Automatically adjusts diamond wire tension and maintains stable pressure during cutting, ensuring consistent performance and extended wire life.
Four-Axis CNC Linkage System
Advanced four-axis CNC control achieves precise multi-axis coordination for complex stone cutting applications with high accuracy.
Intelligent CNC Programming
Supports DXF file import through USB, automatically converting AutoCAD drawings into cutting programs for customized stone projects.
Automatic Wire Break Detection
Intelligent monitoring system detects wire operation status and automatically stops the machine during abnormal conditions for safety protection.
Additional Technical Features
  • Heavy load bearing structure with four orbits on each upright column
  • Synchronized lifting with increased accuracy via lead screw and double nuts
  • Cantilever part with CNC-controlled guide wheel distance and rotation angle
  • Automatic wire break alarm system
  • 2200mm aluminum wheel diameter with oil pump controlled rope tension
  • Four-spindle linkage for precise cutting operations
Manufacturing Strength
Modern factory manufacturing facility with stone cutting machinery
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally
Support & Services
Professional engineering team members Technical team working on machinery
We offer comprehensive technical support and service including on-site support, maintenance, troubleshooting, and repair services. Our experienced technicians are available to ensure optimal machine performance.
Packaging & Shipping
Secure packaging for machinery shipment Packaged machinery ready for shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
