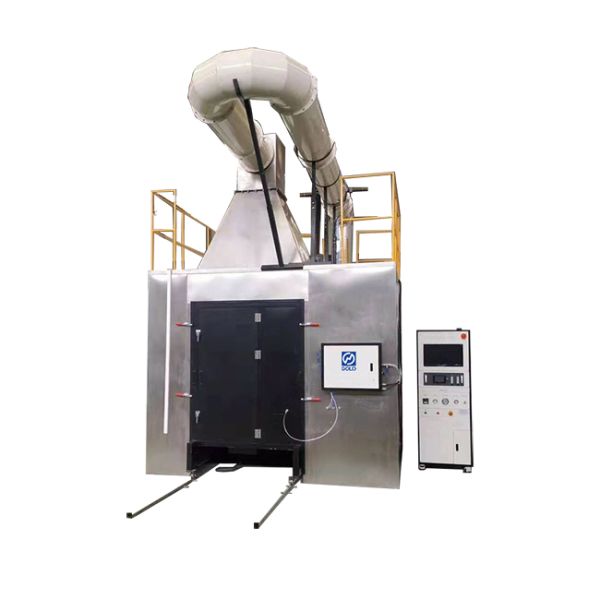

EN 13823 Single Burning Item （SBI）tester for Fire Resistant Wall Panels

The EN 13823 Single Burning Item (SBI) tester is a critical European standard (EN 13823:2020+A1:2022) within the Euroclass fire classification system (EN 13501-1). This equipment evaluates the fire reaction performance of building products (excluding floorings) by measuring heat release rate, smoke production, and flame spread under controlled conditions.

EN 13823:2020+A1:2022: Reaction to fire tests for building products - Building products excluding floorings exposed to the thermal attack by a single burning item (SBI).

• Wall and ceiling linings: gypsum boards, wood panels, metal/plastic composite panels, fiber cement boards
• Insulation materials: mineral wool, polystyrene foam, polyurethane foam, glass fiber, rock wool
• Coatings and treatments: fire-retardant paints, varnishes, wallpapers, decorative films
• Facade systems: ETICS, curtain wall panels, aluminum composite panels
• Duct and linear products: pipe insulation, cable trunking covers, ventilation duct linings
• Composite products: sandwich panels, honeycomb panels, laminates, PVC/acrylic sheets

The test specimen (two vertical wings at right angles) is exposed to a propane flame (30.7 ± 2.0 kW) from a main burner. The 20-minute test evaluates heat release, smoke production, flame spread, and combustion droplets/particulates.

• Monolithic stainless steel combustion chamber for durability and longevity
• Double-layer insulated exhaust system for accurate data collection
• Imported oxygen/CO₂ sensors ensuring high measurement accuracy
• Genuine cast iron flue with double-layer insulation
• Automated combustion control system with safe solenoid valve operation
• Integrated flue gas treatment system to minimize environmental impact
• Omron PLC control system with Schneider solid-state switching devices
• RS-232 serial communication for stable, interference-resistant data collection
• Patented software displaying 11 data curves with Visual Basic 6.0 interface
