| Categories | Fiber Optic Gyroscope |
|---|---|
| Brand Name: | JTZG |
| Place of Origin: | china |
| MOQ: | negotiable |
| Price: | negotiable |
| Delivery Time: | According to customer's requirement |
| Payment Terms: | Negotiable |
| Supply Ability: | Strong production capacity |
| Model Number: | JTZ32A |
| Power Supply: | -5,+5V |
| Product Name: | Single Axis Gyroscope |
| Features: | Digital Closed-loop Mode |
| Module Type: | Gyroscope |
| Grade: | Industrial |
| Operating Temperature: | -40°C To +85°C |
| Applications: | Aerospace, Defense, Navigation, Robotics |
| Turn On Time: | 10s |
| Company Info. |
| Wuhan Jingtian Zhiguang Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
The Fiber Optic Gyroscope is a cutting-edge product that offers high precision and reliability in various applications. Designed with advanced technology, this gyroscope utilizes a Digital Closed-loop Mode for enhanced performance and accuracy.
As a Gyroscope module, this product is specifically crafted to provide precise measurements of angular velocity using fiber optic technology. The Fiber Optic Gyroscope is an Industrial-grade device, ensuring durability and stability in operation.
The Fiber Optic Gyroscope finds extensive applications in Aerospace, Defense, Navigation, and Robotics industries. Its advanced features and reliability make it an ideal choice for various critical operations where accuracy and consistency are paramount.
Featuring a Fiber Optic Gyroscopic Navigation System, this product offers unparalleled accuracy in determining orientation and angular velocity. The Fiber Optic Angular Velocity Sensor integrated into the gyroscope enables precise measurement of rotational motion, making it a valuable tool in navigation and control systems.
The Fiber Optic Ring Laser Gyroscope technology incorporated in
this product enhances its sensitivity and responsiveness, ensuring
accurate and real-time data feedback. This innovative technology
sets the Fiber Optic Gyroscope apart as a top-of-the-line solution
for applications requiring high-performance gyroscopic systems.
| Gyro indicator | parameter |
| Range ( °/s) | ± 300 |
| Bias stability ( °/h) , 10s | ＜ 0.15 (typical value 0.1) |
| Zero bias repeatability ( °/h) , 10s | ＜ 0.15 (typical value 0.1) |
| North finding accuracy ( ° ) | ＜ 1 |
| Random walk coefficient ( °/√h) | < 0.03 |
| Scale factor non-linearity ( ppm ) | ＜ 100 |
| Scale factor asymmetry ( ppm ) | ＜ 100 |
| Scale factor repeatability ( ppm ) | ＜ 100 |
| Frequency bandwidth ( Hz ) | ≥ 100 |
| Startup time ( s ) | ≤5 |
| Power supply ( V ) | ±5V power supply |
| Power consumption ( W ) | ≤5 |

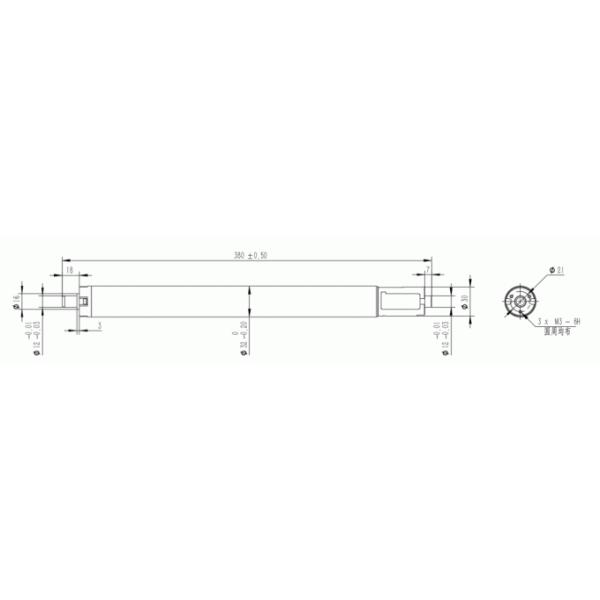

| Dimensions ( mm ) | Φ 32* 380 ± 1 |
| Weight ( kg ) | ＜ 0.6 |
| Output method | RS-422 |
| Operating temperature (°C) | -20 ℃ ~ +70 ℃ |
| Storage temperature (℃) | -5 5 ℃ ~+8 5 ℃ |
| Communication interface | DB9, customizable |
|
