CDH1MF3/40/28/330D1X/B1CHUMWW Heavy Duty Hydraulic Cylinder
Metallurgical Cylinder
Core Features
1,High strength structure
The cylinder body is made of high-strength seamless steel pipe or
forged steel, which is resistant to high pressure (working pressure
usually reaches 25-35 MPa).
The piston rod undergoes tempering and surface hardening treatment
(such as hard chromium plating and medium frequency quenching),
resulting in high hardness, bending resistance, and wear
resistance.
2,Metallurgical specialized sealing system
Adopting a high-temperature resistant (120-180 ° C) and pollution
resistant combination seal (such as polytetrafluoroethylene
PTFE+NBR/FKM).
Multiple dust-proof design (dual dust scraping rings) to prevent
the intrusion of oxide scale and dust.
Typical application scenarios
Continuous casting machine (crystallizer vibration, straightening
machine)
Rolling mill (press down device, coiler, side guide plate)
Steel car, tipping device
Heating furnace door opening and closing
Scrap steel shearing machine, strapping machine
Application Scenarios
General Industrial Machinery
- Plastic machinery: Ejector mechanism and core pulling devices in
injection molding machines
- Press fitting equipment: Bearing press fitting and shaft sleeve
assembly
- Packaging machinery: Capping, bundling, and lifting platform
operations
- Material handling: Lifting platforms, flipping mechanisms, and
clamping devices
Machine Tools and Automated Production Lines
- Clamping and releasing actions of automatic fixtures
- Workpiece positioning push cylinders
- Robot assisted drive systems (non high-speed and high-precision
scenarios)
Light Engineering Machinery
- Small forklift attachments including side shifters and rotators
- Agricultural machinery such as harvester and cutting platform
lifting
- Garbage compression equipment for medium tonnage applications
Testing and Experimental Equipment
- Material testing machine loading and return systems
- Sealing test clamping cylinders
Customization Options
| Parameter | Value |
|---|
| Bore Diameter | 40 mm |
| Rod Diameter | 28 mm |
| Stroke Length | 330 mm |
| Working Pressure | ≤ 25 MPa (standard); up to 35 MPa for some models |
| Operating Temperature | -20°C to +120°C (standard); high-temp versions up to 180°C |
| Mounting Type | Clevis mount (Type M) or flange mount (depending on C/H
designation) |
| Protection Rating | IP65 or higher (dust- and water-resistant) |
Support and Services
Our comprehensive technical support includes troubleshooting
guidance, maintenance advice, and direct access to specialized
engineers. We provide installation assistance, calibration
services, and training resources to ensure optimal performance and
safe operation.
Packaging and Shipping
Each hydraulic cylinder is carefully packaged in protective
materials with clear handling instructions. Units are securely
packed in wooden packaging to prevent damage during transportation.
Frequently Asked Questions
What is the brand name of this Hydraulic Cylinder?
The brand name of this Hydraulic Cylinder is Guoyue.
Where is this Hydraulic Cylinder manufactured?
This Hydraulic Cylinder is manufactured in China.

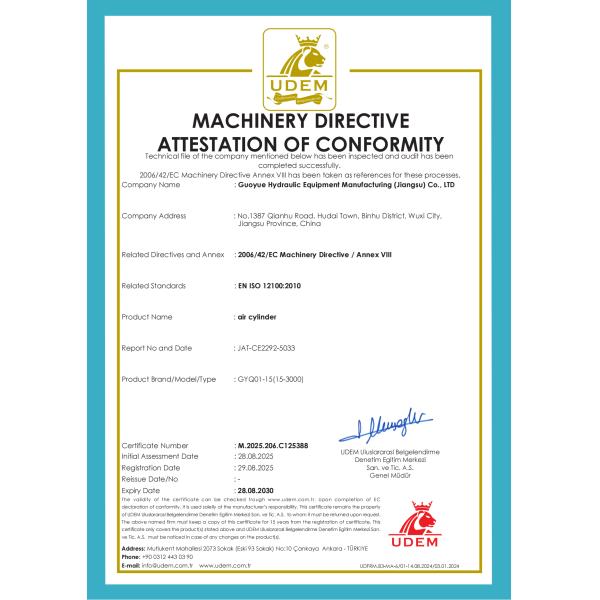

What type of certification does this Hydraulic Cylinder have?
This Hydraulic Cylinder is certified with CE.
What is the minimum order quantity for this Hydraulic Cylinder?
The minimum order quantity for this Hydraulic Cylinder is 1.
What is the price range for this Hydraulic Cylinder?
The price range for this Hydraulic Cylinder is between $250 and
$500.
How is this Hydraulic Cylinder packaged for shipping?
This Hydraulic Cylinder is packaged in a wooden package.
What is the delivery time for this Hydraulic Cylinder?
The delivery time for this Hydraulic Cylinder is 31 days.
What are the payment terms accepted for this Hydraulic Cylinder?
The accepted payment terms for this Hydraulic Cylinder are T/T and
L/C.
