| Categories | Vibration Testing Equipment |
|---|---|
| Brand Name: | HBYIQI |
| Model Number: | SKM500/800/1000/1500 |
| Certification: | ISO-9001 |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Delivery Time: | 15days |
| Packaging Details: | International Standard Package |
| Max bearing load: | 1000kg |
| Waveform: | Half-sine pulse |
| Bump repetition frequency: | 1~120Hz/1~80Hz |
| Maximum velocity change: | 2.2/2.6/2.8ms |
| Power supply: | AC220V±10% 50Hz |
| Standards: | GB/T2423.4;GB/T2423.6;IEC68-2-29;JJG497-2000;JIS C0042-1995 etc |
| Company Info. |
| Guangdong Hengbang Testing Equipment Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

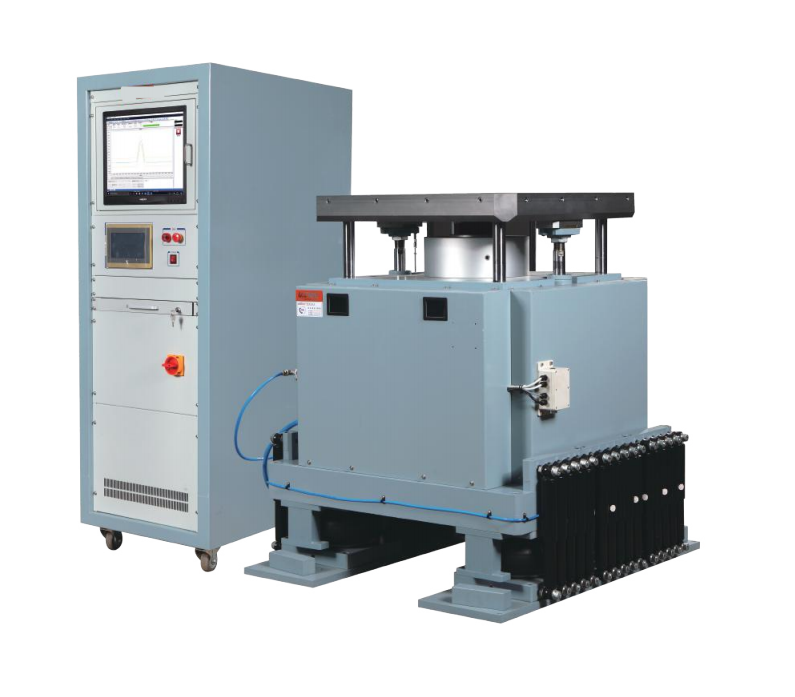

Vibration Testing Equipment BUMP SHOCK MACHINE
Brand: HBYIQI
Equipment purpose:
This product is suitable for components, equipment and other electronic and electrical products that may be subject to repeated impacts during transportation or use. Collision tests can also be used as a method to determine the satisfactory design of the sample in terms of structure, or as a means of quality control. The collision test basically lies in the sample being repeatedly impacted by standard pulses with specified peak acceleration and duration on the collision test machine.
Technical Parameters:
| Model | SKM500 | SKM800 | SKM1000 | SKM1500 |
| Table size(mm) | 500x700 | 800x800 | 1000x1000 | 1500x1500 |
| Max.Payload(kg) | 50 | 200 | 500 | 1000 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5~120 | 5~100 | 5~80 | 5~60 |
| Pulse duration(ms) | 6~18 | |||
| Bump repetition frequency(Hz) | 1~120 | 1~80 | ||
| Drop height range(mm) | 350 | 5~180 | ||
| Maximum velocity change(m/s) | 2.2 | 2.6 | 2.8 | |
| Machine dimension(mm) | 1250×950×1480 | 1550×1040×1550 | 1200x1150x860 | 1600x1650x1200 |
| Machine weight(kg) | 2200 | 2900 | 3660 | 6500 |
| Power &Air supply | AC220V±10%50Hz Air supply(8kg 23m³ gasholder) | |||
| Standards | GB/T2423.4 GB/T2423.6 IEC68-2-29 JJG497-2000 JIS C0042-1995 etc | |||
FAQ
Q1: What is your warranty?
One year product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
Q2: What about the quality?
Each machine must be carried out 100% quality examination and test when shipping and delivery goods. All of our machines are strictly according to CE & ISO standards.
Q3: How to get quotation?
Leave your message and tell us your detail requirement, like test standard, test object, machine size, target price, etc...
We provide 24-hour service online, and provide the quotation and solutions for you within 3 days.
|
