M16 2+4 Pin Connector Round IP67 Waterproof Plastic Outdoor Lighting Connectors

Categories Multi Pin Connectors Waterproof
Current rating: 5A,10A
Operating temperature: -40℃-+105℃
Connecting mode: Push lock
Material: PA66,UL94-V0
Payment Terms: T/T,D/P,L/C,D/A,Western Union
Brand Name: Ulinkcon
Model Number: M16
Certification: CE/Rohs/TUV/UL
Place of Origin: China
MOQ: Negotiation
Price: Negotiation
Supply Ability: 100000 pairs Montly
Delivery Time: 3~6working days
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Waterproof level: IP67
Pin: 2+4pin
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

M16 2+4 Pin Connector Round IP67 Waterproof Plastic Outdoor Lighting Connectors

M16 2+4 Pin Round IP67 Waterproof Plastic Outdoor Lighting Connectors
Product Overview

PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16 - A specialized circular waterproof connector designed for demanding outdoor lighting applications with composite 2+4 pin configuration.

Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Features
  • Core Design: Circular waterproof connector for outdoor lighting systems with 2+4 pin composite shunt design for simultaneous power and control signal transmission
  • Specifications: 2-pin power (≥10A) + 4-pin signal configuration for power supply, dimming, and sensor signal transmission
  • Material Quality: Weather-resistant PA66 engineering plastic housing with UV aging resistance and temperature range of -40℃ to +105℃
  • Protection Rating: IP67 waterproof and dustproof with integrated sealed structure and special waterproof rubber ring
  • Connection System: Circular precise alignment with anti-misinsertion design and rotary locking/snap-on mechanism for vibration resistance
Technical Specifications
ParameterSpecification
Number of Poles2+4 pin waterproof connector
Current Rating15+5A max.
Voltage Rating300VAC max
Durability Voltage1500VAC @ 60 s.
Contact Resistance10 mΩ max
Insulation Structure500 MΩ at 500VDC
Operating Temperature-40°C ~ +105°C
IP ClassIP67 (1m / 30min) when mated
Mold MaterialPA66
Contact/Terminal MaterialGold Plated Brass
Seal MaterialSilicone
Min Wire Size OD3.0mm ~ 6.0mm
Max Wire Size OD8.0mm ~ 10.0mm
Max Cable Cross Section Area0.5mm² ~ 2.5mm²
Design Specifications

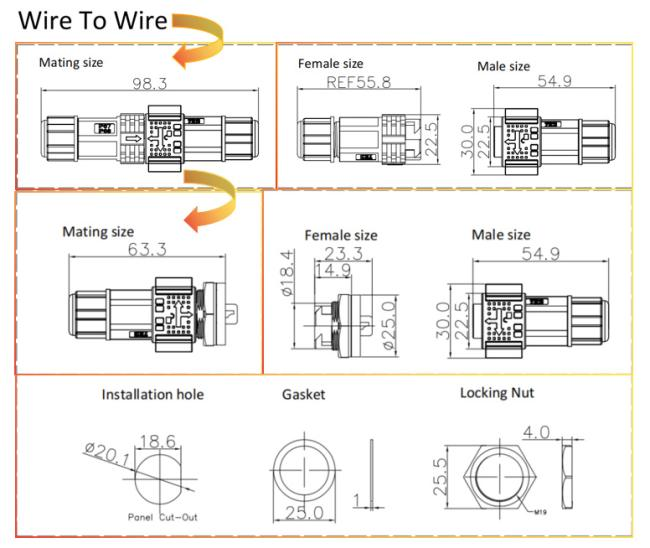

M16 2+4 Pin Waterproof Connector technical design diagram M16 2+4 Pin Waterproof Connector dimensional specifications
Frequently Asked Questions
Q1: Who is responsible for customs clearance? Do you provide necessary documents?
A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
Q2: How to buy your products?
A: You need to do as followings:
  • Confirm Current Rating and Number of Contacts
  • Confirm Assembly style
  • Confirm Cable Wire gauge
  • Confirm Cable Length and Material
Q3: How can I get samples?
A: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample dispatch.
