Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection

Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection

ADVANTAGES OF MONOFILAMENT CHAIN FENCE MACHINES

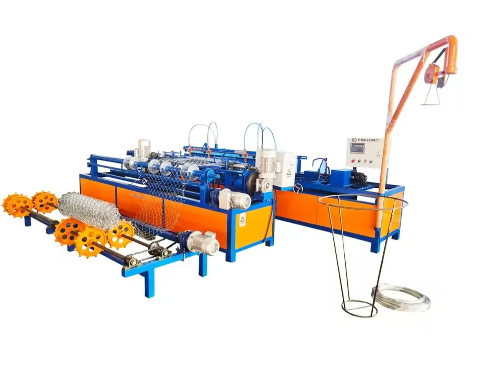

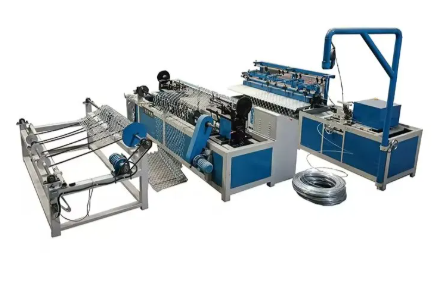

This automatic chain fence machine utilizes high-quality components such as NSK bearings, a Parker hydraulic system, hardened and brazed gears, and internationally renowned electrical components.

Strict quality management ensures the superior quality and long service life of the chain fence machine.

Flexible Mesh Dimensions:

Produces mesh widths from 500-3000mm and lengths up to 30m or customized specifications

Efficient Roll Formation:

Automated rolling system creates compact, easy-to-handle mesh rolls

Specification

TECHNICAL PARAMETERS
Netting Width Specification	2M	3M	4M
No. Of Input Wires	1
Capacity(Based On Mesh Size 50mm*50mm)	60-70M2/H
Power Supply	380V 50Hz (Other Requirements Can Be Custom-Made)
Speed Of The Axle Of The Shaped Knife	200-700RPM
Suitable Wire To The Machine	Galvanized Wire, PVC Wire, Steel Wire
Diameter Of Wire	1.6-4.0Mm(Depend On The Mesh Size)
Power Consumption	7.17Kw, 5 Motors(Based on 4M, It relates to the Dia. of wire, and the power can be custom-made.)
Mesh Size	25*25mm-100*100mm (if the mesh size is 25*25mm, the steel wire should be all soft)
Weight Of Equipment	2.2T	2.5T	3.0T
Main Machine Outer Size	4.8M*1.1M*2.3M	5.5M*1.1M*2.3M	6.5M*1.1M*2.3M
Auxiliary Machine Outer Size	2.5M*1.5M*1.1M	4M*1.5M*1.1M	4.5M*1.5M*1.1M
The Color Of The Machine	Can Be Custom-Made
Max. Winding Capacity	30 Meters Per Roll

INTELLIGENT PRODUCTION CONTROL

Automated Wire Joining:

A Sophisticated joining mechanism ensures a seamless connection between wire segments

Transportation & Storage Optimization:
Mesh Compacting System: Integrated shrinking machine reduces mesh volume for cost-effective transportation and storage

COMPREHENSIVE INDUSTRIAL APPLICATIONS

Airport Perimeter Fencing:

High-security applications requiring robust, reliable barrier solutions

Railway Security Systems:

Durable fencing for transportation infrastructure protection

Highway Safety Barriers:

Weather-resistant fencing for roadway safety and boundary demarcation

Commercial & Industrial Security:

Professional-grade fencing for factories, warehouses, and commercial properties

Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.

The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products.

Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
