Split Pressure Solar Water Heater Pump Work Station Sp116 with CE

Categories	Solar Water Heater Parts&Accessories
Model NO.:	SP116
Pressure:	Pressurized
Interior Material:	Stainless Steel
Collector Components:	Glass Vacuum Tube
Composition:	Collector
Certification:	CE, ISO9001, CCC, Solar Keymark
Solar Water Heater Capacity:	100L 150L 200L 250L 300L 400L 500L
Solar Water Heater Accessories:	Solar Collector, Upright Water Tank, Work Station
Fuction:	Control and Circulation
Type:	Micro computer
Transport Package:	Carton
Specification:	50L to 500L
Trademark:	QIRUI/OEM
Origin:	China
HS Code:	841919100
Production Capacity:	4000sets Per Month
MOQ:	1
Price:	800

Contact Now

Add to Cart

Company Info.

Haining Qiruite Photoelectric Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Split Pressure Solar Water Heater Pump Work Station Sp116 with CE

Split Pressure Solar Water Heater Work Station SP116 with CE

System demonstration

Main technical details

01. Dimension: 380× 220× 140mm
02. Input voltage: 200V-240V AC or 100V-120V AC
03. Power: ≤ 3W
04. Accuracy of temperature measuring: ± 1centigrade
05. Range of temperature measuring: PT1000: 0-199centigrade NTC10K: 0-99centigrade
06. Input signals:
1*PT1000 sensor temperature probe ≤ 500centigrade, silicon cable ≤ 280centigrade;
2*NTC10K sensor temperature probe≤ 135centigrade, PVC cable ≤ 105centigrade
07. Output signals:
1*Auxiliary heating output (Max. Load current: 10A)
2*Relay output (Max. Load current: 3A)
08. System design pressure: 1 MPa
System working pressure: 0.8 MPa
09. Safety valve respond pressure: 0.6 MPa
10. pump model: SR15/6
11. Screw coupling: 1/2"
12. Pipeline Material: Yellow copper
13. Secondary display screen device (For choice)
14. LCD-display
15. Range of environment temperature: -10-50centigrade
16. Water protection grade: IP40

Main Functions

01. Time display
02. Temperature difference circulation
03. Storage tank overheating protection
04. Emergent stop of system overheating
05. Frost protection of pipeline and collector
06. Three periods of time adjustable on pipeline circulation
07. Three periods of time adjustable on auxiliary heating
08. Holiday function*
09. Anti-bacteria function*
10. Three speed levels on circulation pump
11. Display flow rate
12. Display system pressure

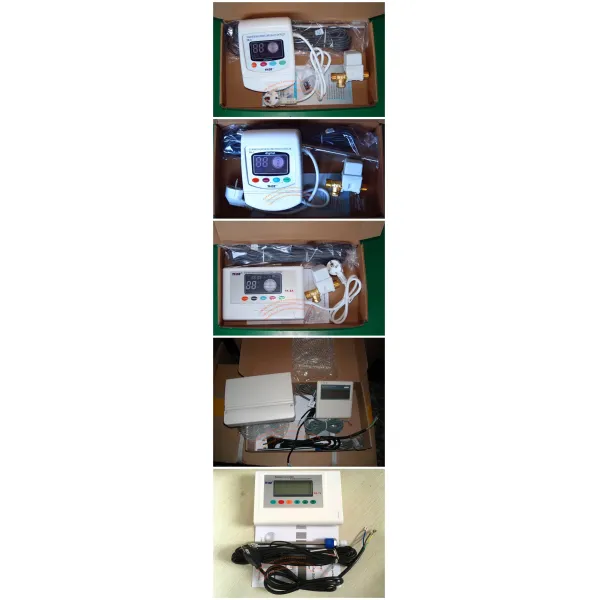

Packing list

No.	Item	Specification	Quantity
1	Work station	385×220×135mm	1 pc
2	PT1000 sensor	15m	1 pc
3	NTC sensor	3m	3 pcs
4	Main Power cable		1 pc
5	Auxiliary heater cable		1 pc
6	P2 output cable		1 pc
7	Filling valve		1 pc
8	Fixed screw		1 bag
9	Manual		1 pc

Split Pressure Solar Water Heater Pump Work Station Sp116 with CE
