BHMS300 PVC Edge Banding Tape Machine PVC Corner Band Making Machine

BHM S300 High-Speed Automatic Edge Bander

We produce high-quality edge banding machines with fast delivery. Customization options include color, LOGO, engine, and other configurations. Custom orders available starting from just 1 piece.

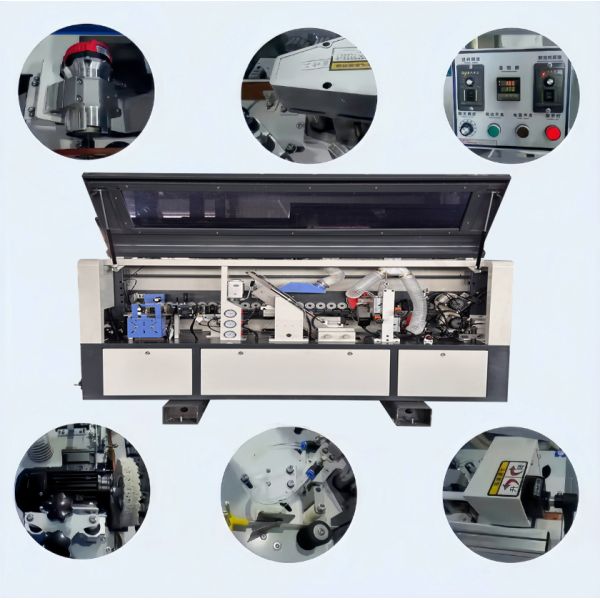

BHM START 300 High-speed Fully Automatic Edge Banding Machine

The BHM S300 represents the pinnacle of automated woodworking technology, designed specifically for manufacturers who demand flawless edge sealing on a production scale. This machine is engineered to handle the rigorous demands of high-volume furniture production, offering a perfect blend of speed, durability, and precision. By automating the entire edge banding process, the S300 transforms rough panels into finished components with invisible seams and mirror-smooth surfaces.

Unlike semi-automatic models, this industrial workhorse utilizes a robust chassis and advanced pneumatic systems to ensure consistent pressure and alignment, even during extended shifts. Whether you are working with hardwood veneers, PVC, or melamine, the S300 guarantees a professional-grade finish every time.

Specifications

Outline dimension	35007501500mm	Conveyor speed	18~24m/min
Machine weight	1000KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	7KW	Working pressure	0.7Mpa
Plate thickness	10-60mm	Edge banding thickness	0.3~3mm

Key Features

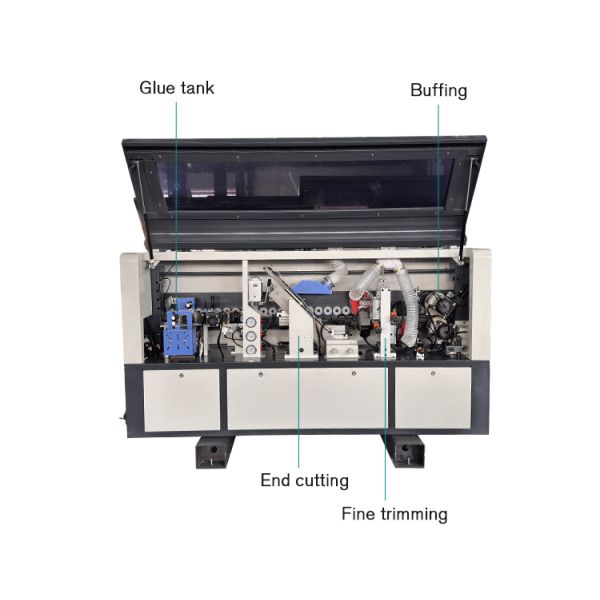

The BHM S300 automates the entire workflow through a series of synchronized stages, ensuring maximum efficiency and quality:

1. Precision Hot Melt Gluing
The process begins with a high-efficiency spiral glue tank. This system ensures the adhesive is heated uniformly and applied evenly to the panel edge. The consistent bonding layer is crucial for preventing delamination and ensuring the edge banding adheres perfectly to the substrate.

2. End Trimming & Squaring
Equipped with a single-guide rail system, the machine performs precise cross-cutting at both the entry and exit ends of the panel. This ensures that the final product is perfectly square and free of frayed edges, a critical requirement for high-end cabinetry and furniture.

3. Fine Trimming & Scraping
After the banding is applied, a high-speed oblique cutting motor with a tungsten carbide disc trims the excess material flush with the panel surface. A dedicated scraping station then follows to eliminate any microscopic wave marks left by the trimmer, preparing the surface for the final polish.

4. Mirror Polishing
The final stage utilizes a buffing unit to bring the sealed edge to a high-gloss, mirror-like finish. This not only enhances the visual appeal of the product but also seals the edge against moisture and wear.

High-Throughput Production
With a conveyor speed of 18-24 meters per minute, the S300 is built for speed without sacrificing quality. The integrated encoder ensures that all mechanical movements are synchronized, allowing for rapid processing of large batches.

Intelligent PLC Control System
Gone are the days of complex manual adjustments. The S300 features a Programmable Logic Controller (PLC) interface that manages the machine's operations. This intelligent system enhances stability, reduces downtime, and ensures repeatable results across thousands of cycles.

Industrial-Grade Durability
Weighing 1000kg, the machine's heavy-duty steel frame provides exceptional vibration damping. It is constructed using premium components from globally recognized brands (including Schneider electricals and SICK sensors) to guarantee longevity and reliability in a commercial workshop environment.

Versatile Material Compatibility
The machine adapts seamlessly to various materials, including wood, PVC, and ABS strips ranging from 0.3mm to 3mm in thickness. It handles a wide range of panel sizes, from small components to large industrial boards.

Comprehensive Support
Manufactured by Qingdao Baihang Industry and Trade Co., Ltd, the S300 comes with CE certification and comprehensive support. This includes instructional videos, English manuals, and 24/7 online assistance to ensure you maximize your investment.

For Buyers

Our woodworking machinery offers affordability, customization, and multiple model options to perfectly meet your requirements, whether for small or large operations.

For Suppliers

Our innovative woodworking machinery provides excellent profit margins with 1-3 years of after-sales service. We offer pre-delivery testing, air shipping for critical parts, and free promotional support in your market.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize color, size, and logo to your specifications.

Q2: Where is your factory located?

A2: Our manufacturing facility is in Qingdao City, Shandong Province, China.

Q3: Can you make the machine according to my design or prototype?

A3: Yes, our professional designers will create the most suitable production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide instructional videos and English manuals, plus free professional guidance until you achieve proficiency.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your designated port - please provide your port name for accurate shipping rates.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7, with optional overseas installation service.

Q7: What if my machine needs repair?

A7: We provide free online training. For warranty-covered major issues, we will repair the machine.

Shipping Information

Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.

Product Tags:


*From:	Your email address is incorrect!
*To:	Qingdao Baihang Industry and Trade Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Automatic Edge Banding Machine
Brand Name:	BH
Model Number:	BHM 300
Certification:	CE
Place of Origin:	Qingdao China
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year
Delivery Time:	7-30Days
Packaging Details:	36008501600mm
Total power:	7KW
Plate thickness:	10-60mm
Speed:	18~24m/min
Dimension:	35007501500mm
voltage:	380V/50Hz
Edge banding thickness:	0.3~3mm
