250ML Laboratory Planetary Vacuum Mixer Mixing Equipment

Categories Pouch Cell Assembly
Brand Name: ACEY
Model Number: ACEY-PVM-250ML
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: USD 1950 /Set
Payment Terms: T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability: 200 Sets/Month
Delivery Time: 7~35 Days
Packaging Details: Plywood Case
Power supply voltage: AC220V
Rated power: 200W
Stirring speed: MAX600 rpm
vacuum degree: -0.08Mpa
Warranty: 1 Year Warranty With Lifetime Support
After-sales Service: 24/7 Technical Support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

250ML Laboratory Planetary Vacuum Mixer Mixing Equipment

250ML Laboratory Planetary Vacuum Mixer Mixing Equipment
This vacuum mixing and dispersing system is a high-efficiency unit designed for blending positive and negative electrode slurries, as well as mixing powder materials and various ceramics in battery research. By operating under vacuum, the stirring process is entirely bubble-free, which significantly enhances material packing density and the structural compactness of the final product.
Key Advantages
Vacuum-state mixing completely eliminates bubbles, enhancing material filling density and model compactness for superior results.
Product Features
  • Integrated vacuum system effectively eliminates mixing process bubbles
  • Dual-shaft planetary stirring paddles with optional single-shaft blade configurations
  • Forward and reverse stirring function for high-viscosity slurry processing
  • Stepping motor with PLC frequency speed control for precise operation
  • Multi-stage speed programming with customizable timing for each stage
  • Safety-engineered bracket design for secure vacuum mixing operations
  • Modern geometric design with sleek, professional appearance
Technical Specifications
Power Supply VoltageAC220V
Rated Power200W
Stirring SpeedMAX 600 rpm
Speed Regulation FunctionThree-stage speed, configurable
Vacuum SystemBuilt-in vacuum pump, vacuum degree -0.08Mpa, pressure maintained for 2H without obvious drop
Stirrer ConfigurationStandard twin-shaft screw agitator; other types designed according to the tank body
Stirring Tank Volume150ml~500ml vacuum stirring tank
Mixing Time0~600min, configurable
Overall Dimensions335mm * 325mm * 575mm (L*W*H)
Overall Weight35kg
Product Display
Dual Shaft Planetary Stirring Vacuum Mixing Machine front view

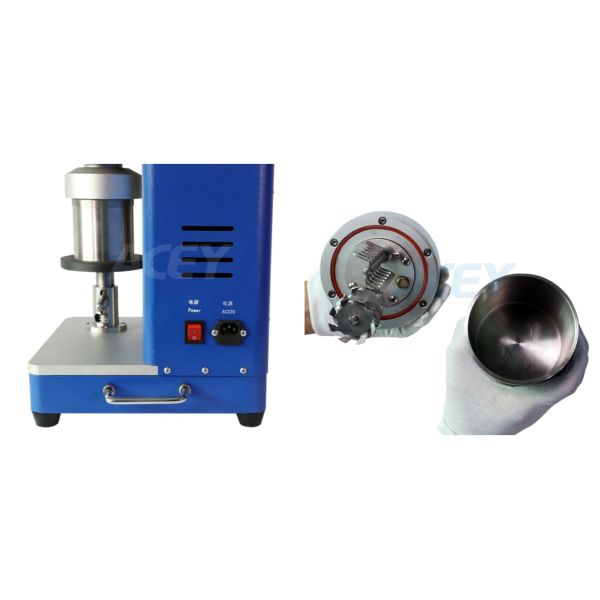

Dual Shaft Planetary Stirring Vacuum Mixing Machine operational view
