Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester

Landfill Biogas Digester Fixed TDLAS Laser Methane Leakage Inspection Monitoring

Description:

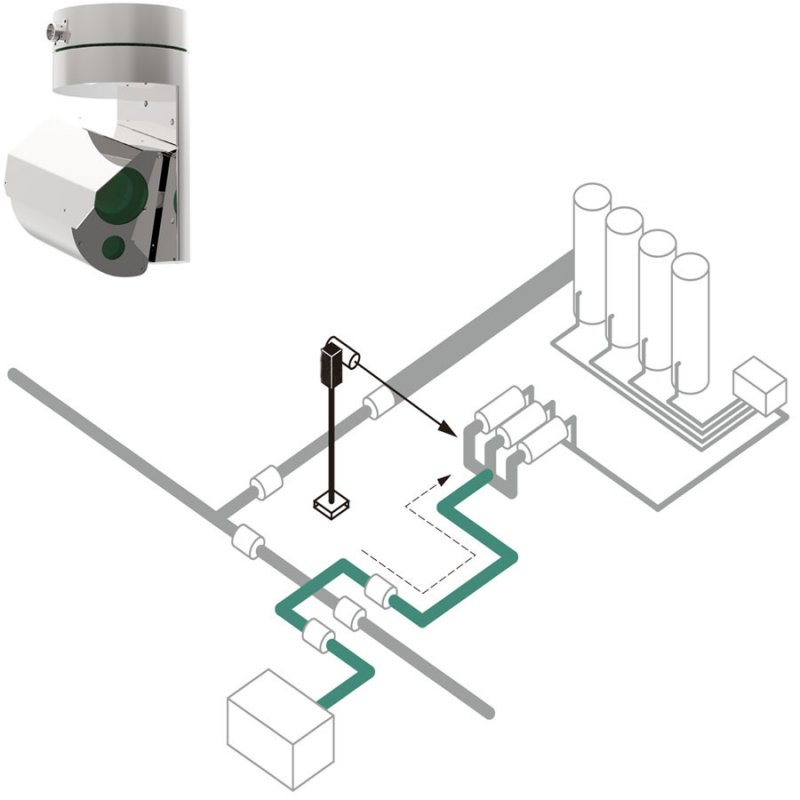

The P20 Pan Tilt laser gas leak monitoring system is an advanced laser methane detector for pipelines,Landfill, Biogas Digester and gas storage facilities. The Remote laser methane leak monitoring systems work according to the TDLAS principle (Tunable Diode Laser Absorption Spectroscopy) for the detection of methane. This laser method has the advantage that it is very sensitive at the specific measuring wavelength of methane (λ = 1.65 μm) and has no relevant cross-sensitivities to other gases in the atmosphere, e.g. exhaust gases from other cars.

Features:

Fully automatic: Pan Tilt P20 Open-Path operates autonomously and does not require a separate power source.

Fast detection: Detects gas leaks faster than conventional methods. Detection time 0.1 sec.

Non-stop operation: Pan Tilt P20 Open-Path works 24 hours a day all year round.

Sensitive to methane only: The Pan Tilt P20 open path laser monitoring is precisely calibrated to detect methane and ignores other gases, providing accurate readings without false alarms.

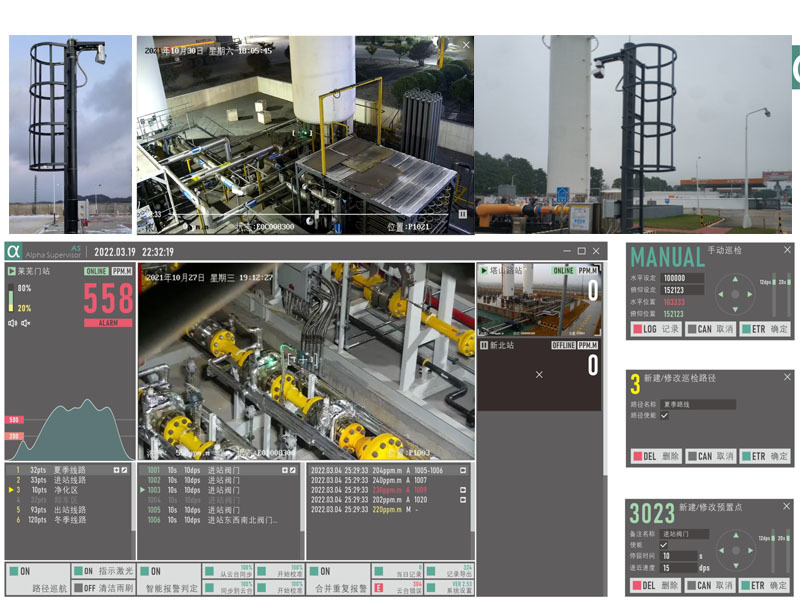

Network monitoring: Pan Tilt P20 Open-Path can be integrated into a mesh network with centralized control, allowing the operator to receive real-time data from all connected devices.

Dust and rain protection: Pan Tilt P20 Open-Path meets the IP66 protection standard and safe from harsh weather conditions like rain, snow, or sandstorms.

Receiver and transmitter self-test mode: To ensure accurate methane detection.

High sensitivity: Pan Tilt P20 Open-Path determines the leakage of any mixture in which 1% methane is present.

Various useful features: Availability of heated optics, non-volatile memory, real time clock, auto-zero and built-in signal processing algorithm

Technical Parameters:

Model	P20	Detection Subject	Methane(CH4)
Measuring Principle	TDLAS	Detection Lase「Class	Class I Eye safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No Direct Sight or Instrument Observation
Response Time	0.05s	Explosion-proof Grade	ATEX Exib 11B T4 Gb
Concentration Range	0 ~ 50,000 ppm·m	Enclosure Protection Class	IP68
Maximum Detection Distance	150m	Operating Temperature	-40 ~ 70 ℃
Pan-tilt Control	Azimuth 360 °&Elevation +/-90 °	Operating Humidity	< 90%RH, no condensation
Power Consumption	20W	Main Unit Dimension	139x 139 x 263mm
Main Housing Material	Stainless Steel	Weight	5.5 kg

Multi Application:

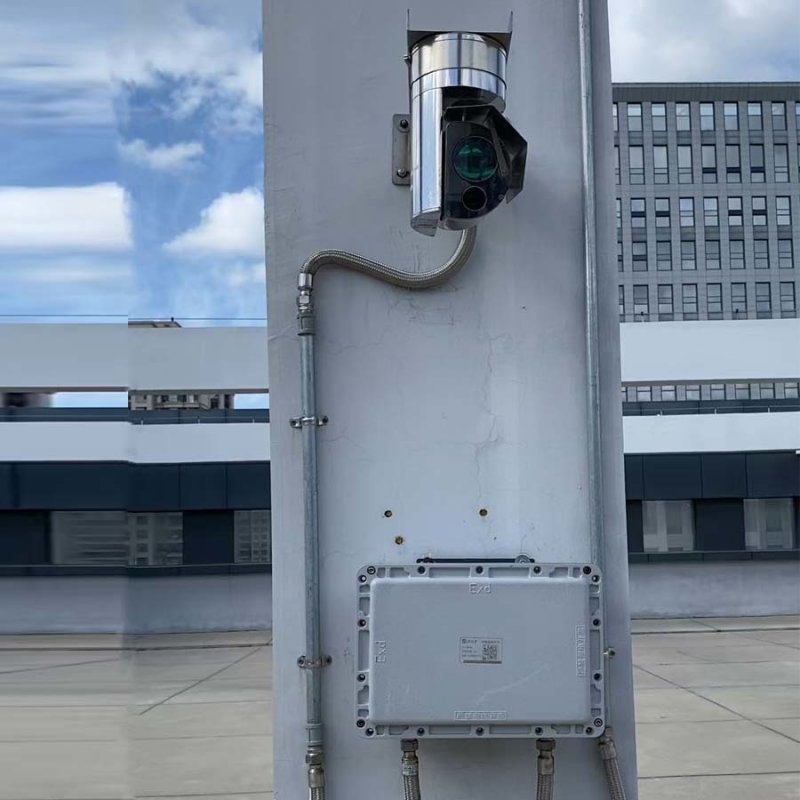

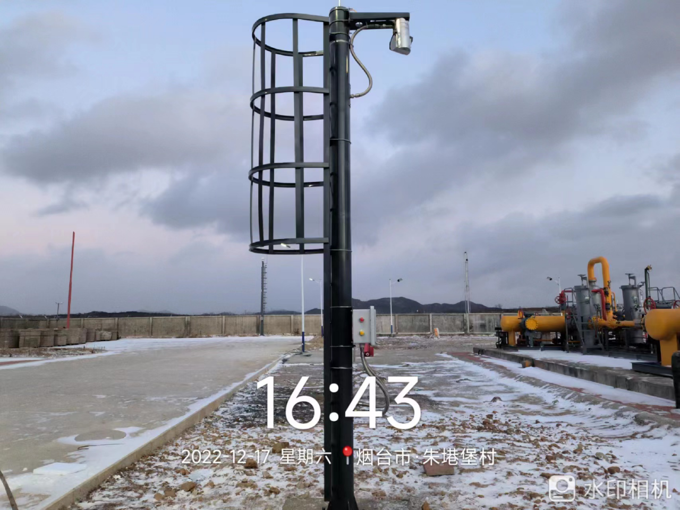

P20 's ultra-low power consumption supports solar power supply and can be connected to the backend system via 5G network. Its compact size and weight, similar to a surveillance camera, make it easier to install and dismantle.

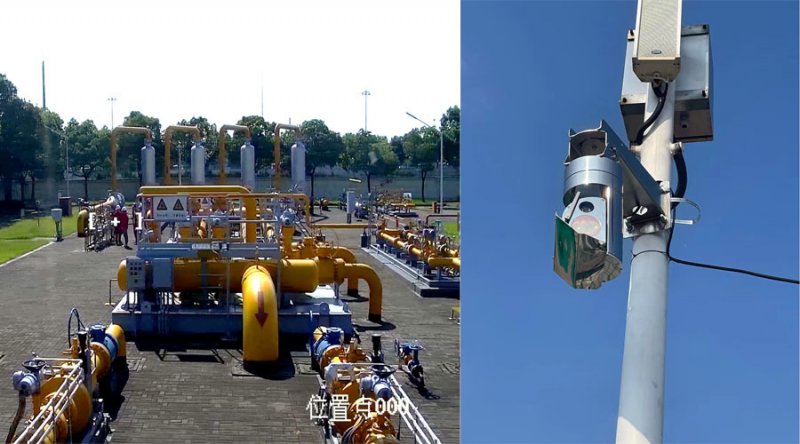

Pan Tilt Scanning Natural gas leak monitoring systems are used in various industries, including:

Oil and Gas:

Monitoring pipelines, storage facilities, and processing plants for leaks.

Manufacturing:

Detecting leaks in industrial processes involving flammable or toxic gases.

Energy:

Monitoring gas distribution networks and power plants.

Chemical:

Detecting leaks in chemical plants and storage facilities.

Wastewater Treatment:

Detecting leaks in biogas systems and other processes involving potentially hazardous gases.

AiLF Instruments is an innovative high-tech company that applies laser gas detection technology and is committed to providing the industry with first-class products and solutions.

With advanced technology accumulation and profound understanding of industrial applications, AILF Instruments has won a good market reputation and become a high-quality supplier for many large domestic enterprise groups and international first-class industry users.

AiLF has been focusing on gas detection with laser absorption spectroscopy technology for more than 17 years. For different scenarios, we can always find suitable detection solutions with our products. Quite a few international companies are our end customers, like Chevron, Gazprom, Saudi Aramco, Petronas, QatarEnergy, etc.

Product series

A Series:Vehicle based Methane Inspection System(PPM/PPB Level)
L Series:Remote Laser Methane Leakage Detector    (From 50meters to 200meters)
P Series:Open Path Pan-tilt Methane Monitoring System
U Series:UAV Based Laser Methane Leakage Detector
G Series:Portable Laser Methane&Ethane Detector
C Series:Handheld Laser Methane Detector (Full Range)

Any interests,pls feel freely contact with us.
