Plastic PVC Water Drainage Pipe Extruder Corrugated Pipes Extrusion
Making Machine
This Plastic Pipe Extrusion Machine is primarily used for
manufacturing agricultural/water supply/drainage pipes,
architectural water supply/drainage pipes, cable laying pipes, and
similar applications. The pipe extrusion line incorporates advanced
design concepts to ensure efficient extrusion of PVC or PE powder,
combined with unique plasticization screw design for uniform
plastic extrusion and high-capacity production.
Production Line Configuration
The plastic pipe making machine production line consists of SJZ
series conical twin screw extruder, mould, vacuum cooling tank,
spray cooling tank (for large size pipes), haul-off machine,
cutting machine, stacker, and other essential components.
Additional auxiliary machinery includes hot & cooling mixer
(necessary), crusher, milling machine, and belling machine
(optional).
Applications
The final UPVC pipes are utilized for electrical conduit pipes,
water supply pipes, sewage pipes, house decoration, chemical
transportation, gas distribution lines, and various industrial and
daily life applications. These pipes feature high strength and
rigidity, structural integrity, excellent chemical resistance,
durability, thermal stability, non-toxic safety properties, and low
maintenance cost-effectiveness.
Production Process
PVC powder + additive → mixing → spring feeding → twin screw
extruder → mould and calibrator → vacuum forming machine → haul-off
machine → cutting machine → stacker
Specifications
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
|---|
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Key Components
Conical Double-Screw Extruder
Features specialized mixer design that reduces raw material
self-friction, enhancing energy utilization efficiency. Includes
vacuum suction load with low noise and dust-free operation.
PVC Pipe Extrusion Mould
Crafted with premium brand components to ensure production
stability, efficiency, and machine durability. The conical twin
screw extruder design accommodates raw material characteristics for
homogeneous mixture, superior plastification, and enhanced
conveying efficiency.
Vacuum Calibration Tank
Utilizes two-chamber structure comprising vacuum calibration and
cooling sections. Both vacuum tank and spraying cooling tank are
constructed from stainless 304 steel. The advanced vacuum system
ensures precise pipe sizing.

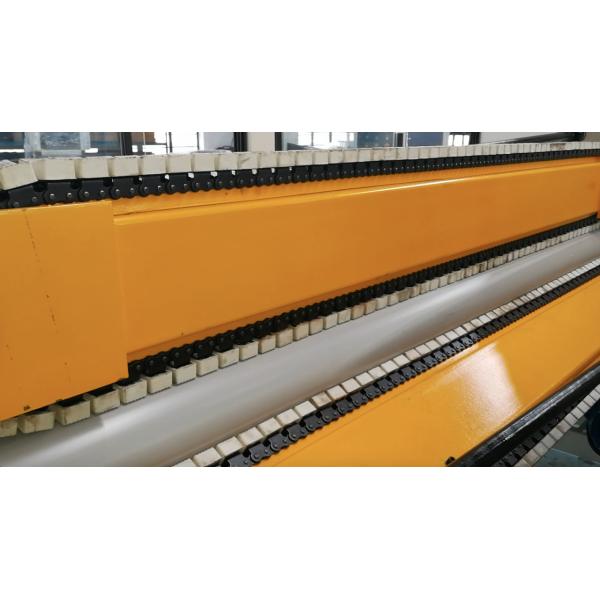

Pipe Haul-off Machines
Equipped with three crawler tracks to ensure stable and steady pipe
operation. Haul-off units offer customizable hauling models based
on specific production requirements through general control
adjustments.
Pipe Cutter
High-accuracy encoder guarantees precise and stable cutting
lengths. PLC control system enables manual operation cutting
according to specific application needs.
Technical Features
- Extruder controlled by digital display control instrument or PLC
control system with HMI touch screen control panel
- Vertical type integrated gearbox with high torque, accuracy, and
durable performance
- Bimetallic screw and barrel; screw inner temperature controlled by
thermo oil pump system; equipped with degassing zone; optimized
double screw material feeding system for stable PVC powder
production
- High production capacity: Four outlet PVC pipe extrusion line
achieves approximately 12,000kg per 24 hours while maintaining
product quality
- Reduced water and air consumption: WONPLUS optimized cooling water
channel and air circuit decrease consumption by at least 25%
compared to traditional systems
Delivery Information
- Delivery: 30 days after order confirmation
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
Our Service
- One-year guarantee for entire machine
- 24-hour technical support
- Overseas installation & commissioning services by our engineers
- Post-warranty maintenance guidance and competitively priced spare
parts
- Comprehensive operator training services
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturing factory. Yes, our production plant in
Zhangjiagang, Jiangsu Province (near Shanghai and Wuxi) welcomes
visitors at any time. Pick-up service is available for nearby
guests.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in
various countries for online communication and offer
customer-focused, tailored technical suggestions. For offline
contact, factory visits enable face-to-face discussions about our
plastic extrusion expertise and machine building capabilities.
Is shipping cost included in the quotation?
Our quotations typically include FOB Shanghai terms, meaning
shipping costs between delivery and destination ports are excluded.
Langbo can assist customers in obtaining current shipping prices,
with customers deciding whether to include shipping in the
quotation or select their own shipping agent.
What happens after order confirmation?
Configuration confirmation → Proforma invoice signing → 30%
prepayment for production initiation → Test running (on-site or
video connection) → Machine condition confirmation → 70% payment
for delivery preparation → Delivery date confirmation → Shipping →
On-site commissioning → Operator training → Handover confirmation →
One-year guarantee → Lifetime service and technical support
What payment methods are accepted?
T/T, D/P, Letter of Credit, Cash transaction
How is machine quality guaranteed?
We provide one-year guarantee and lifetime technical support.
During in-house test running, customers can inspect machines
on-site, with immediate optimization of any identified issues.
How can customers ensure they receive the exact machine required?
Pre-order factory visits, product sample submission for expectation
alignment and configuration communication, and on-site checking
during test running.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are
CE Certified.
What is the delivery timeline?
Typically 45 days from order confirmation to delivery, with exact
timelines specified in the contract based on project requirements.
What after-sales services are provided?
One-year quality guarantee, rapid technical support response, and
production problem analysis.
What does the one-year quality guarantee include?
After machine handover, Langbo provides free replacement parts for
all non-human-caused damages.
