100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg

100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg

100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg
100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg
Categories Metal Detector Machine
Brand Name: ZL
Model Number: ZL-4005
Certification: CE,ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Delivery Time: 5-8 work days
Packaging Details: 100100 Large Size High Resolution X-Ray Security Scanner With Load Capacity 250 Kg is packaged within wooden case.
Product name: 100100 Large Size High Resolution X-Ray Security Scanner With Load Capacity 250 Kg
Conveyor speed: 0.22 m seconds.
Penetration: 34mm steel plate
Line resolution: Φ = 0.0787mm, wire
Conveyor height: 345mm
Channel size: 1000 (W) x 1000 (H) mm
Noise: ≤58dB
Key words: 100100 Large Size
Contact Now
Company Info.
Dongguan Zhongli Instrument Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg

Large Size High Resolution X-Ray Security Scanner
Model 100100 with 250 kg load capacity - professional security screening solution for high-throughput environments.
Advanced Imaging Functions
  • Multiple image processing modes: color, black and white, local enhancement
  • Advanced enhancement features: high wear, low wear, super increase
  • Material discrimination: organic rejection, inorganic removal
  • Visual optimization: reverse color, highlighting, darkening, gray sweeping
  • Analysis tools: magnification, pseudo-color, edge enhancement
  • Security features: suspicious object alarm mark, precise positioning
Comprehensive System Functions
  • Power-on self-test function and multi-level user management
  • Advanced image management with multi-format export capabilities
  • OSD operation function with image mirroring
  • 1-64 times stepless amplification for detailed inspection
  • Operator training mode and remote operation software
  • Curve diagnosis and equipment information query
Applications & Usage Scope
Ideal for security screening at transportation hubs, government facilities, and public venues including:
  • Bus stations, railway stations, and high-speed rail stations
  • Airports, customs, and government agencies
  • Embassies, convention centers, and courts
  • Tourist attractions, sports venues, and post offices
  • Express delivery companies and manufacturing facilities
  • Hotels, schools, and various security inspection points
Technical Specifications
Conveyor Speed0.22 m/s
Maximum Load Capacity250 kg
Penetration Capability34 mm steel plate
Line ResolutionΦ = 0.0787 mm wire
Penetration ResolutionΦ = 0.127 mm wire
Spatial ResolutionHorizontal: Φ1.0 mm, Vertical: Φ1.0 mm
Noise Level≤ 58 dB
X-Ray Generator Specifications
Tube Voltage160 KV (default), customizable to customer requirements
Tube Current0.2 ~ 0.6 mA
Cooling / Working TimeCooling with sealing oil / 100% duty cycle
Beam DirectionDivergence angle from bottom diagonal (60°)
Radiation Safety Features
Single DoseLess than 1 μGy (microsievert)
Leakage Radiation Dose RateLess than 0.35 μGy (tested 5 cm from device surface)
Radiation ProtectionDouble-layer staggered, wear-resistant lead curtain with 2-5 mm lead plate
Film SafetySafe for SO1600 film
Installation & Physical Parameters
Channel Size1000 mm (W) * 1000 mm (H)
Conveyor Height345 mm
Product Size3781 mm (L) * 1290 mm (W) * 1810 mm (H)
Packaging Size2140 mm (L) * 1350 mm (W) * 1830 mm (H)
Net Weight1000 kg
Gross Weight1100 kg
DisplayStandard 19-inch (16:10 / 1440*900) display
KeyboardPC keyboard, optional industrial keyboard
Operating Temperature-20°C to +60°C
Operating Humidity5% to 95% (non-condensing)
Storage Temperature-30°C to +70°C
Working Voltage110-240 VAC (-10% to +20%) 50/60±3 Hz
Power & Certification
Power Consumption< 1.0 kW/h
CertificationComplies with IEC electrical safety standards and CE requirements (EMC/LVD/ROHS)

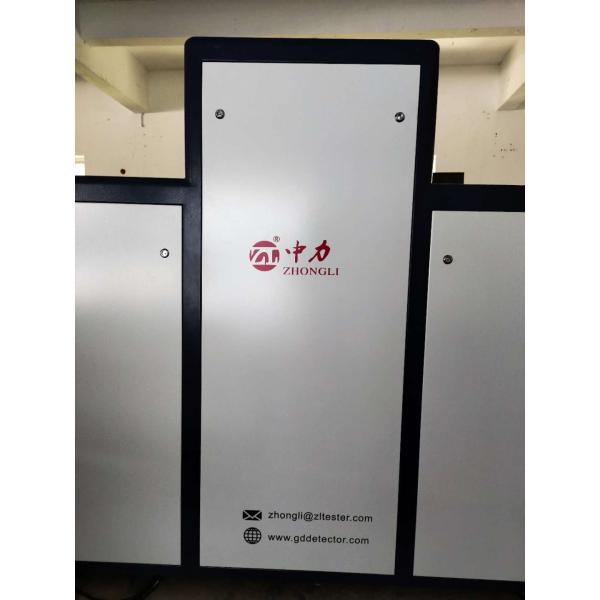

Large Size High Resolution X-Ray Security Scanner - Model 100100 with 250kg load capacity
