Transparent LED Display See Through Display Video Panel SMD1921 For Fashion Store

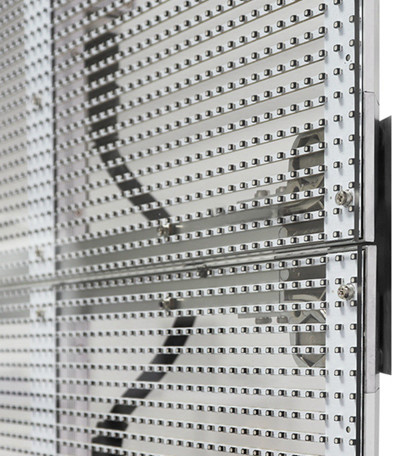

Ultra-Transparent
● Permeability is 60% -80%, translucent, ventilation, does not affect the lighting and line of sight,It’s very suitable for installing glass walls.
Customized is Available
● Modern transparent LED display has all kinds of types, the structure is complex, the size isn’t the same, the standard cabinet couldn’t meet the needs of all projects , BG series can be customized the best product solution according to the reality situation, to ensure the permeability of transparent LED display, completeness of display and consistency.
Indoor installation for outdoor Viewing
● Easy to maintenance, safety, less approval processes than outdoor advertising.
Energy saving,fast cooling
● Edge-lit LED encapsulation technology, small LED size, high brightness, low current, saving 30% energy than general SMD LED display.

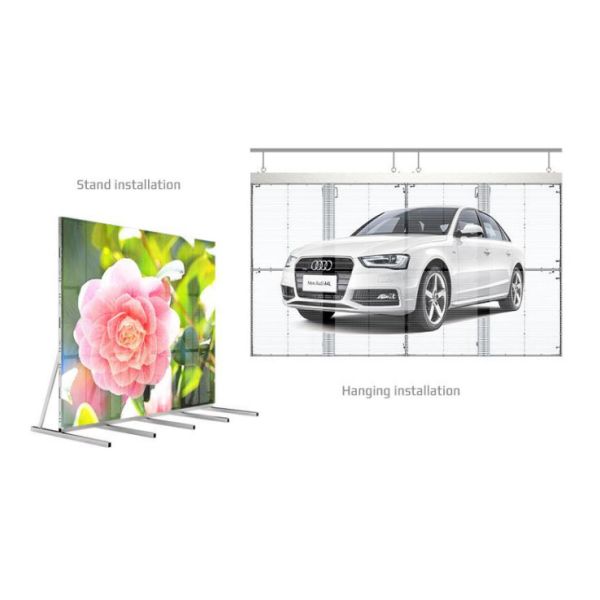

Install Method

| BG-2.5-7.8 | BG-3.9-7.8 | BG-5-8 | BG-10 | BG-16 | |
| Physical Pitch | 2.5x7.8mm | 3.9x7.8mm | 5x8mm | 10.4x10.4mm | 16mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 50688pixels/m² | 32256pixels/m² | 25000pixels/m² | 9216pixels/m² | 3906pixels/m² |
| Module Dimensions (WxH)(mm) | 500x125 | 500x125 | 480x320 | 500x125 | 480x320 |
| Panel Dimensions (WxH)(mm) | 1000x500 | 1000x500 | 960x640 | 1000x500 | 960x640 |
| NO. of Modules Per Panel(WxH) | 2x4 | 2x4 | 2x2 | 2x4 | 2x2 |
| Physical Resolution of Module(WxH) | 200x16 | 128x16 | 96x40 | 48x12 | 30x20 |
| Physical Resolution of Panel(WxH) | 400x64 | 256x64 | 192x80 | 96x48 | 60x40 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:01:00 | 2000:01:00 | 2000:01:00 | 2000:01:00 | 2000:01:00 |
| Average Power Consumption | 240W/m² | 180W/m² | 203W/m² | 140W/m² | 218W/m² |
| Max. Power Consumption | 700W/m² | 560W/m² | 670W/m² | 400W/m² | 650W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 1000~4200 nits | 1000~4200 nits | >5500 nits | 1000~4200 nits | >5500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 | IP30 | IP30 | IP30 | IP30 |
| Servicing | Rear | Rear | Rear | Rear | Rear |
| Scan Method | 1/11 Scan | 1/7 Scan | 1/6 Scan | 1/2 or 1/4 Scan | Static Scan |

We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.

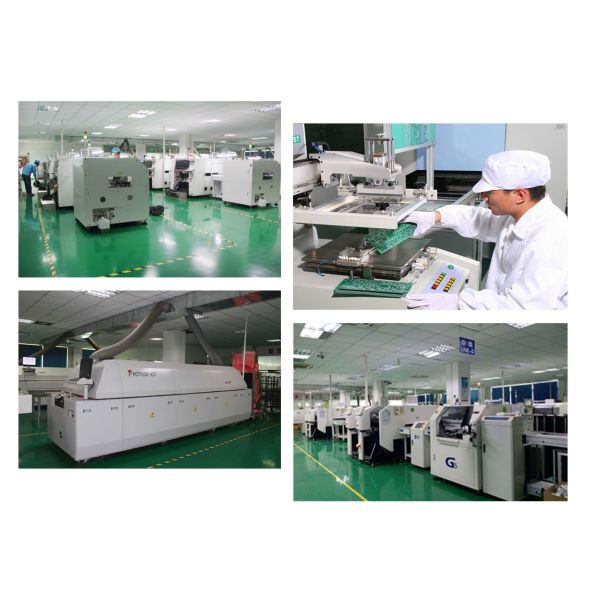

LED Vision Technology Limited , started in Shenzhen in 2005, a
world class manufacturer of technologically advanced LED displays,
focusing on high end professional customers among domestic and
overseas markets. BAKOVISION is fully capable to provide the tailor
work of OEM, ODM, creative LED models beside of standard LED
screens.
BAKO VISION contains of experienced team leaders and each of them
has been working in LED display industry over 10 years. All of our
R&D, Production, Sales, Technical Support depts….are running
efficiently and smoothly by our great team work, moreover,
delivering qualified product and offering timely pre-after service
are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental,
I/O fixed install, transparent screen, advertising poster, foldable
screen, flexible screen, curtain, floor LED, perimeter display…
meanwhile, based on our experienced R&D team and comprehensive
management, we are always open and been proficient in breaking new
model and tooling for customized solutions as well as creative
products.
BAKO VISION main markets are among America, Europe, Middle East and
Asia, all of our products are certificated by
RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly
by proficient, in the past years of development, BAKO VISION
continuous growth and brand positioning are all relied onto the
long term partnership with variety channel customers over 120+
countries.
|
