Hydraulic Automatic Rising Bollards Retractable Steel Brushed
Finishing

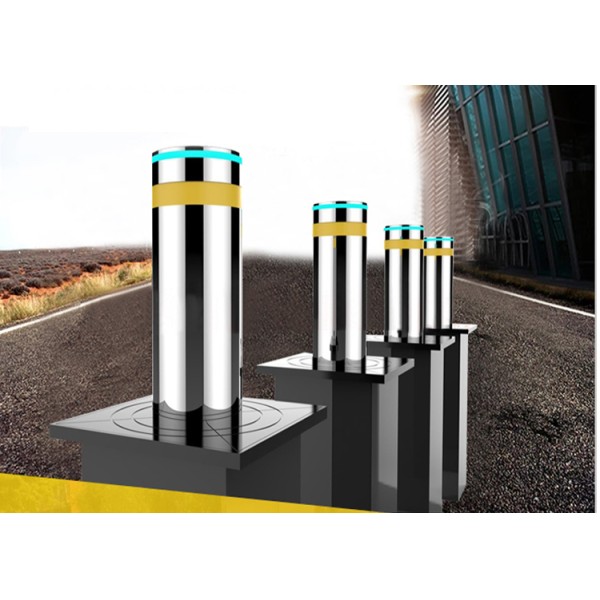

Electro-hydraulic retractable steel rising bollard system for
parking and traffic control applications.
Product Overview
The electro-hydraulic rising bollard is an automatic lifting road
barrier featuring a motor and hydraulic cylinder power unit. This
integrated hydraulic driving system controls bollard elevation
through motor operation, providing reliable vehicle access control
at entrances and exits.
Applications
Widely deployed at highway toll stations, checkpoints, prisons,
airports, government facilities, embassies, bases, customs, banks,
industrial sites, ports, warehouses, parking areas, and all
locations requiring vehicle traffic restriction.
Technical Specifications
| Specification | Details |
|---|
| Color | Silver |
| Raising/Lowering Speed | 3-6s (adjustable) |
| Diameter | 219mm/273mm/324mm |
| Raised Height | 600-1000mm (optional) |
| Material | 304/316 stainless steel |
| Control Mode | Remote control (<100m) |
| System Control | Hydraulic and electric control |
| Working Temperature | -30℃～+75℃ |
| Embedded Cylinder Depth | 1100mm |
| Lamp Belt | LED lamp (Acrylic light circle) |
| Power Supply | 220V/110V |
| Thickness | 6mm, 8mm, 10mm, 15mm, 20mm |
| Weight | 100-150kg |
| Anti-collision Levels | K4, K8, K12 |
| Service Life | More than 5 million cycles |
| Drainage Mode | Natural drainage + External drainage system |
SINOMATIC Bollard Advantages
- Multiple steel thickness options (default 6mm)
- Various color customization available
- Custom sizing capabilities
- Stable and secure OMRON PLC control system
- Fast rising time with durable hydraulic pressure operation
- Durable stainless galvanization housing
- Optimized frame structure with high anti-impact and loading
capability
- Enhanced security and anti-collision performance
- Reflective band and low-energy LED lighting for nighttime
visibility
Key Features
High Security: Superior anti-collision capability with pneumatic air pump
providing sustained power.
Electronic Control: Automated rise/fall operation with high system independence.
Reflective Band: Multiple color options with excellent nighttime visibility under
minimal lighting.
Material Options: 304 stainless steel, 316 stainless steel, and carbon steel with
electrophoresis spray paint.
Anti-skid Flange: Unique pattern design compatible with various road surfaces,
featuring built-in PA orientation.
Top Cap Design: Simple integration compatible with diverse architectural styles,
resistant to close attacks.
Manufacturing Excellence
Located in Shenzhen, China, our 5,000 square meter manufacturing
facility features modern production lines, powder coating
capabilities, R&D departments, and processing centers. Our
products serve transportation infrastructure, educational
institutions, government agencies, airports, correctional
facilities, installations, customs, border control, parks, and
smart city applications worldwide.
We leverage extensive knowledge and manufacturing expertise to
deliver custom solutions with short lead times and exceptional
value. Our focus remains on producing durable, high-performance
products with competitive pricing and comprehensive customization
options.
With excellent cost-performance ratios, our products are exported
globally to Europe, the United States, East Asia, Russia, and
Middle Eastern markets. Advanced technology meets international
quality standards with superior corrosion protection, earning
customer trust worldwide.
