| Categories | Large Copper Wire Drawing Machine |
|---|---|
| Brand Name: | JD |
| Model Number: | JD-450/13 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1Set |
| Price: | USD 10000-20000/Set |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, |
| Supply Ability: | 30 Sets/Month |
| Delivery Time: | In 40-50 days after received your advanced payment |
| Packaging Details: | Export packing the end of the sleepers fixed machinery to do non-slip, with bubble wrap anti-collision, external plastic packaging waterproof moisture |
| Materials: | Copper Rod |
| Inlet wire Dia: | 8mm |
| Outlet wire Dia: | 1.2mm-4.0mm |
| Drawing number: | 13 |
| Max drawing speed: | 25m/s |
| Warranty: | One year |
| Factory history: | Specialized in this field for over 15 years |
| Our aim: | Make clients the least invest,the highest returns |
| Usage: | Produce wire cable |
| After-sales Service: | Engineers available to service machinery overseas |

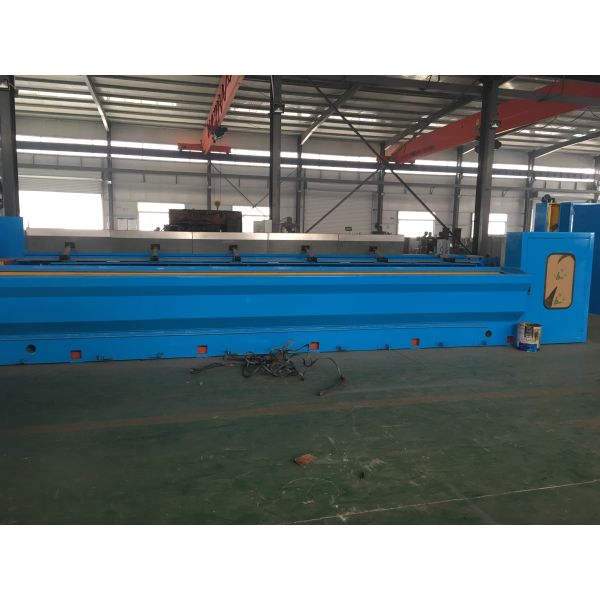

High-end produce 13die Copper Rod Breakdown Machine High Production Capacity Low Noise
1.Usage
The machine is used for drawing copper wire/rod from 8mm to 1.2-3.5mm
2.Main features of our product:
1. Manufacturer(developing history more than 15 years)
2. ISO approving,ISO9001-2008
3. Best after sale service(one year warranty,longtime maintenance,supply all the spare parts)
4. Advanced technique
5. We can design the machine that meet your requirements
1.The drawing blocks are arranged in a horizontal single-bank tilt, and the distance between the cantilevers of all die holders are short, and in equal length, and have a strong stiffness.
2.The surface of drawing blocks is coated with tungsten carbide (powder), which is strong in hardness and abrasion resistance, and has a long life span.
3.The main drawing machine and fix speed capstan have their own motor drives separately, and are provided with a Quick Die--Change Function.
4.Continuous dual take up, automatic reel-change, the conductor elongation is not changed when changing the reel. The success rate of automatic reel-change is more than 99%.
5.Driven by DC motor, the imported PLC and touch Screen( Siemens of Preface) are convenient for operator to set and display the parameter on the touch screen.
Technical Parameters
| Item description | Specification | |
| Material | Low-oxygen or no-oxygen copper rod | |
| Max. Diameter of the Inlet | 8.0 mm | |
| Diameter of the outlet wire | 1.20-4.0 mm | |
| Max. Mechanical Speed | 1500m/min | |
| Max. Number of Die | max 55mm | |
| Outer Diameter of suitable die | Max 55mm | |
| Mechanical Elongation | 28%-34% | |
| Drawing drum diameter | 400mm & 500mm | |
| Capstan diameter | 450mm | |
| Main motor power for drawing | AC 250kw | |
| Motor power for capstan | AC 75kw | |
| Motor power for lubricant pump | AC 1.5kw | |
| Motor power for rotary die | AC 0.55kw | |
| Dimension of the Machine (L*W*H) | 9*1.8*1.2M | |
| Net weight of the Machine | 13T | |
Production Efficiency (M/min)
| Specification | Hard wire (M/min) |
| Material | Low-oxygen or no-oxygen cooper rod |
| 1.2mm | 1300 |
| 1.6mm | 1100 |
| 2.0mm | 950 |
| 2.6mm | 900 |
| 3.0mm | 600 |
| 3.5mm | 500 |
| 4.0mm | 400 |
Long history
We have 16 years manufacturer history, companying with good reputation, since our factory set up in 2003.
Supply ability:
We specialize in design machines according customers' requirements. 300 sets of machines can be supplied/month.
Equipment working site:
You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby.
Successful experience / Markets:
Be up to the international level. Our lines and related complete equipment have been exported to India, Indonesia, Morocco, South Africa, Algeria,Mexcio,bangladesh ,Russia,Uzbekistan etc.
6.Engineers for machine’s installation and debugging in Uzbekistan
8.Advantages:
1).XINDACHANG(JINDA )has some world famous parts suppliers. Have high price performance ratio.
2).special lubrication system for the gears and bearing.
3).second section annealing system, outside electrically neutral (no current flow to other unit)
4).body and other key components and parts are produced by our own factory, quality is reliable.
5) Our company’s developing process in more than 10 years.
9. After-sale service:
Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Removable simple problem our company for our machine product,
Since the shipment date, our company free after sale maintenance service guarantee period is:
A: 1 year for mechanical part,
B: 6 month for electrical part.
